Catalogue item

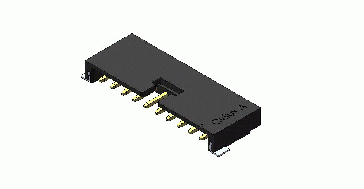

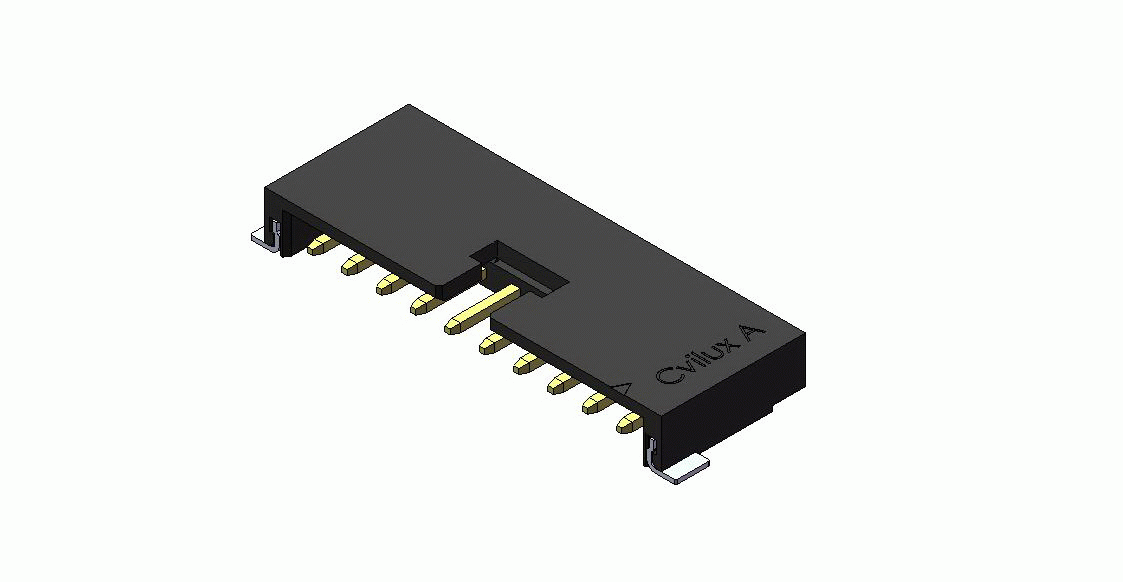

CI08 Series 2.0mm(.079")Wire to Board Connectors DIP Headers
• Current rating : 3A 200V AC(AWG#26),2.5A 200V AC(AWG#28),1.5A 200V AC(AWG#30) • Dielectric Withstanding Voltage : 500 V AC for one minute • Contact Resistance : ＜25mΩ • Insulation Resistance : ＞1000MΩ • Operating Temperature : -40℃~85℃ • RoHS Compliant • Lead Free Process • Halogen-Free
Generally high availability — ask for current lead time
Catalog-page
<a href='/media/cvilux/cdi_pdf_1301.pdf' style='color: rgb(255,0,0)' target='_blank'>Download P104 CI08</a>
Circuits
#26~#30 CIRCUTS
Product Drawings
<a href='/media/cvilux/cdi_pdf_233.pdf' style='color: rgb(255,0,0)' target='_blank'>Download CI0808SA</a>
GWIT
0
Halogen Free
0
Lead Free
0
Additional information
| Catalog-page | Download P104 CI08 |
| Circuits | #26~#30 CIRCUTS |
| Product Drawings | Download CI0808SA |
| GWIT | 0 |
| Halogen Free | 0 |
| Lead Free | 0 |
| Location | HBC |
| Plating Code | 1=Tin plated over Nickel 2=Gold flash plated over Nickel Download GENERAL%20PLATING-2 PDF |
| RoHS | 0 |
| Test Report | Download CI15I082 |
| Tin-lead | 0 |
| TUV | 0 |
| UL | 0 |
Description
N/A
