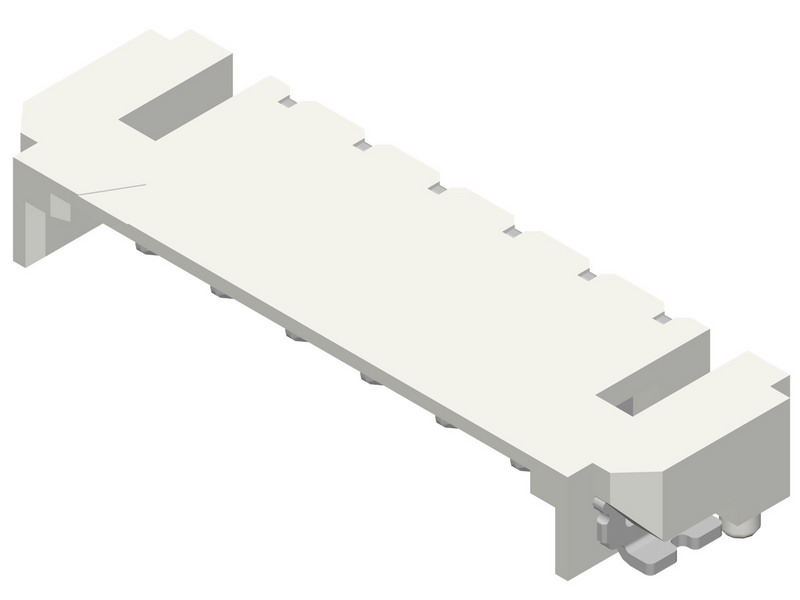

CP15 Series 1.50mm Right Angle SMT Board Mount Plug Connectors Zoom

CP15 Series 1.50mm Right Angle SMT Board Mount Plug Connectors

• Current Rating : 1.0 Amp
• Voltage : 150V AC.(4P) 250V AC.(3P Omitted Pin No.2)
• Dielectric Withstanding Voltage :
1300V AC for one minute(4P) ; 1500V AC for one minute(3P Omitted Pin No.2)
• Contact Resistance : 20mΩ Max.
• Insulation Resistance : 1000MΩ Min.
• Operating Temperature : -25℃~85℃
• RoHS Compliant

Availability: Estimated delivery time 2-3 weeks

1

Conditions Of Sales
Terms of delivery

Shipping information
Payment information





Additional Info

Additional Info

Circuits 3,4 CIRCUTS
Plating Code 1= Matte Tin Plated over Nickel Download GENERAL PLATING PDF
Product Drawings Download CP1501S Download CP1503S
Specification Download SPCP075
Catalog-page Download P160 CP15-2
Test Report Download CP15 可靠度測試報告
Location HBC

Mating Connectors

this product has no mating connectors products

Required Components

this product has no mating Required components products

Accessories

this product has no accessories products

Description

Details

N/A
