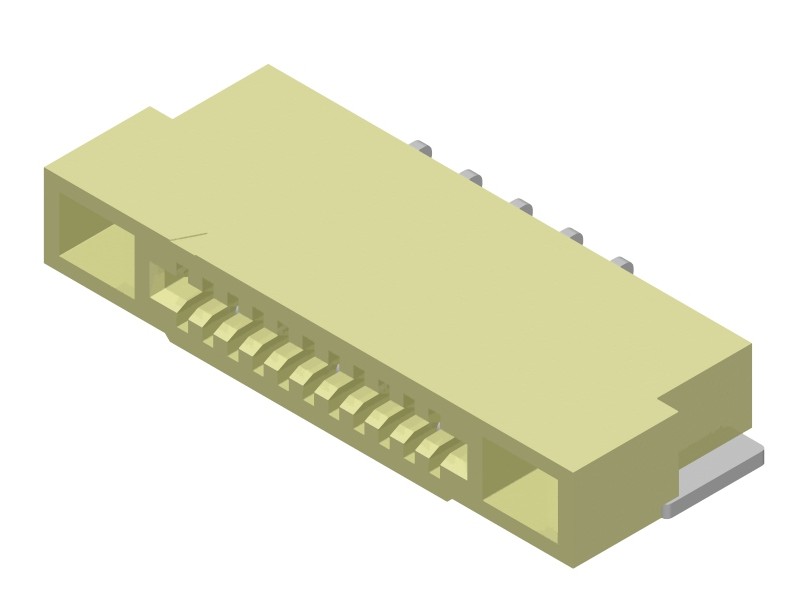

CF06 series 1.0mm(.039) LIF Right Angle SMT FFC/FPC Connectors
Catalogue item

CF06 series 1.0mm(.039) LIF Right Angle SMT FFC/FPC Connectors

• Rated current and voltage : 0.5A 50V AC(r.m.s) • Dielectric Withstanding Voltage : 500 V AC for one minute • Contact Resistance : ＜20mΩ • Insulation Resistance : ＞100MΩ • Operating Temperature : -20℃ ~ 80℃ • RoHS Compliant

Generally high availability — ask for current lead time
Catalog-page
<a href='/media/cvilux/cdi_pdf_1542.pdf' style='color: rgb(255,0,0)' target='_blank'>Download P46 CF06</a>
Circuits
4~15 CIRCUTS
Product Drawings
<a href='/media/cvilux/cdi_pdf_122.pdf' style='color: rgb(255,0,0)' target='_blank'>Download CF0602S</a>
GWIT
0
Halogen Free
0
Lead Free
0
Request a quoteCall usEmail

Additional information

Catalog-pageDownload P46 CF06
Circuits4~15 CIRCUTS
Product DrawingsDownload CF0602S
GWIT0
Halogen Free0
Lead Free0
LocationHBC
Plating Code1=Tin plated over Nickel 2=Gold flash plated over Nickel Download General Plating PDF
RoHS0
SpecificationDownload SPCF058
Test ReportDownload Test Report
Tin-lead0
TUV0
UL0

Description

N/A
