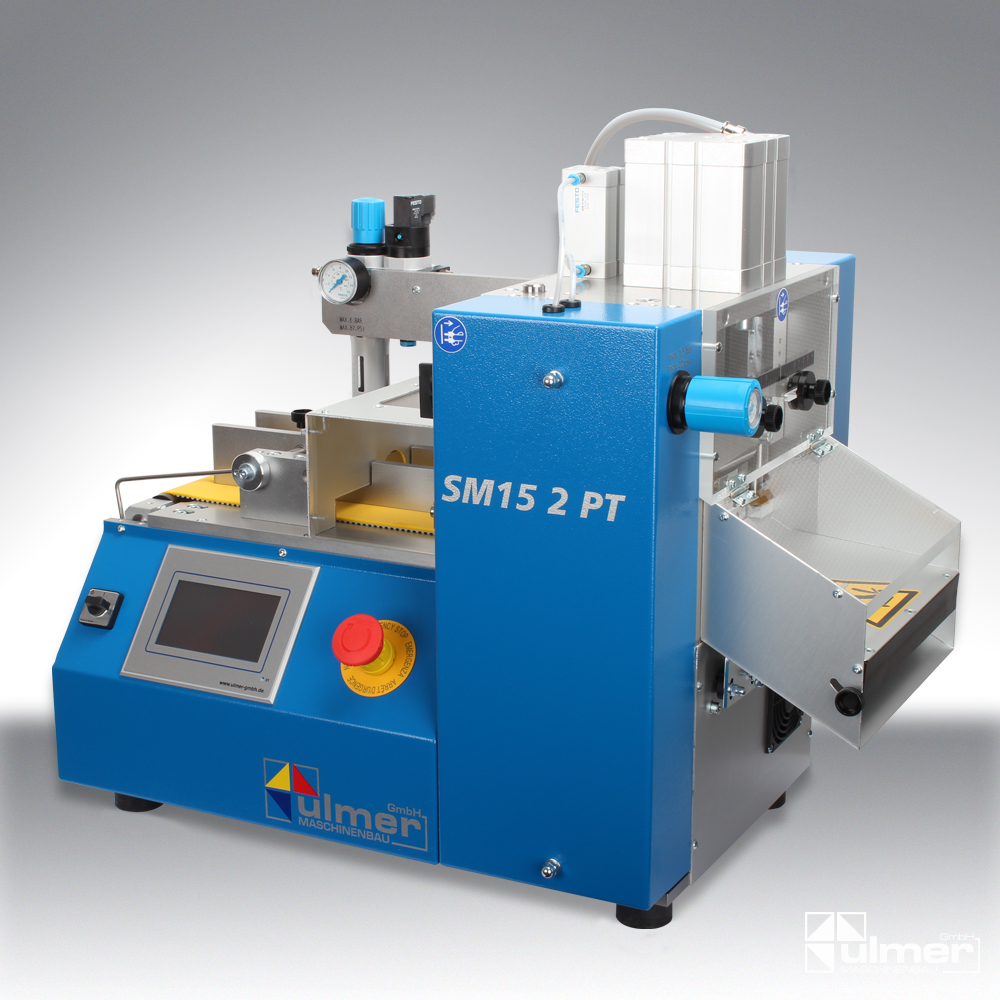

Ulmer Universal cutting machine SM 15 2PT
The SM 15 2PT is a universal, servo-driven cutting machine with an industrial touchscreen that stores product data for secure, reproducible cutting. It processes a wide range of materials, from foils, shrink tubing and fabric to insulation, wires and round cables, and is extendable up to a full production line.
Features
- Stores product data for reproducible cutting
- Industrial touchscreen, easy to operate
- Powerful servo drive for exact positioning
- Processes foil, shrink tubing, fabric, insulation, wires and round cables
- Cuts wire up to 70 mm²
- Synchronised upper and lower toothed-belt feed
- Optional multi-lane infeed guide and monitoring / cutting units
- Extendable up to a full production line (SM15 / SM30 series)
Specifications
- Cutting range width
- 150 mm
- Cutting range height
- 15 mm (30 mm centre)
- Max wire cross-section
- 70 mm²
- Accuracy
- 0.1 mm
- Feed speed
- 1 m/sec
- Pulling force
- up to 20 kg
- Drive
- Servo
- Power supply
- 230 V / 50 to 60 Hz / 16 A
- Air supply
- 6 bar (87 psi)
- Dimensions (L / W / H)
- 670 / 430 / 570 mm
- Weight
- 60 kg
