Catalogue item

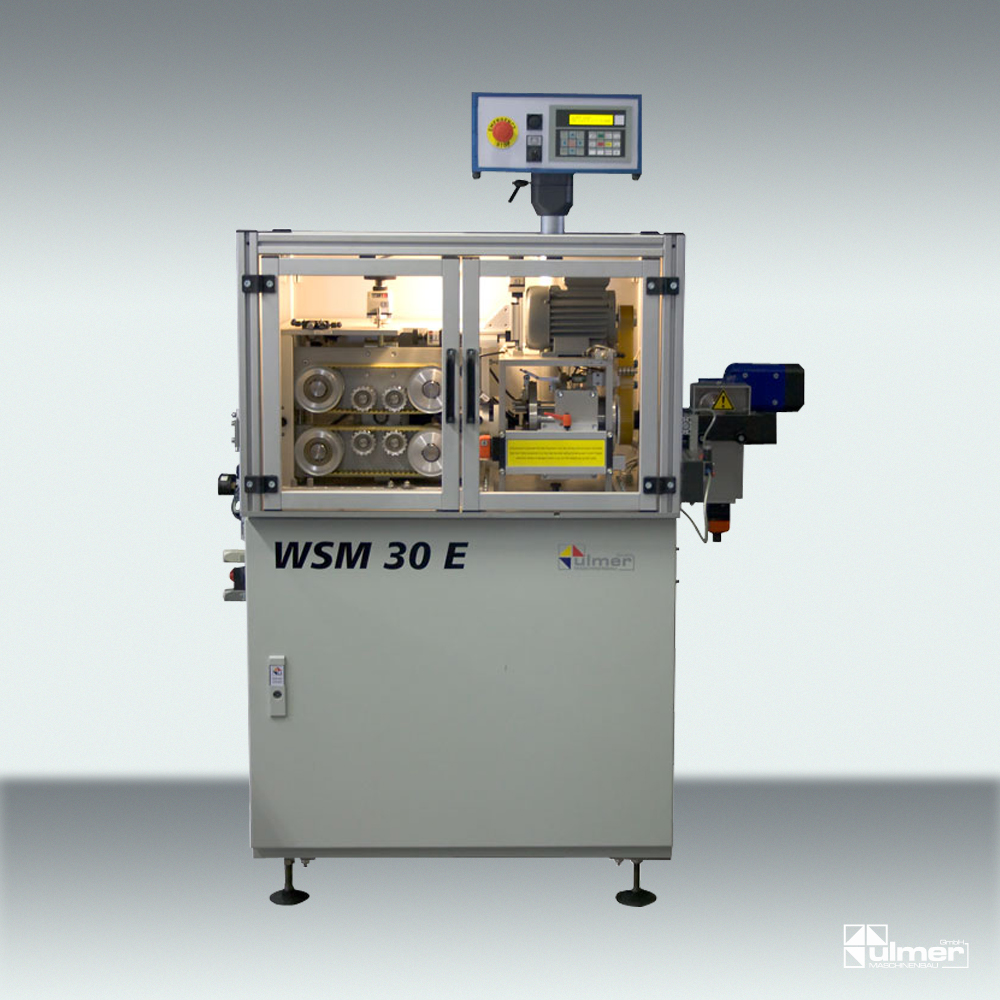

Ulmer Corrugated tube cutting machine WSM 30 E
The WSM 30 E is a rotary corrugated-tube cutting machine for non-slitted corrugated tubes from 7 to 32 mm outer diameter. The blades rotate continuously around the tube to cut cleanly at the specified length, with an optional longitudinal slitting unit.
Features
- Cuts non-slitted corrugated tubes in rotation mode
- Optional slitting unit for longitudinal slitting
- Telescopic cutting head
- Laser light barrier for positioning
- Guide nozzles and blade sets for 3 tube diameters (customer-specified)
- Supplementary accessories for special forms
Specifications
- Corrugated tube outer diameter
- 7 to 32 mm
- Material
- Non-slitted corrugated tube
- Cutting mode
- Rotary
- Positioning
- Laser light barrier
- Cutting head
- Telescopic
