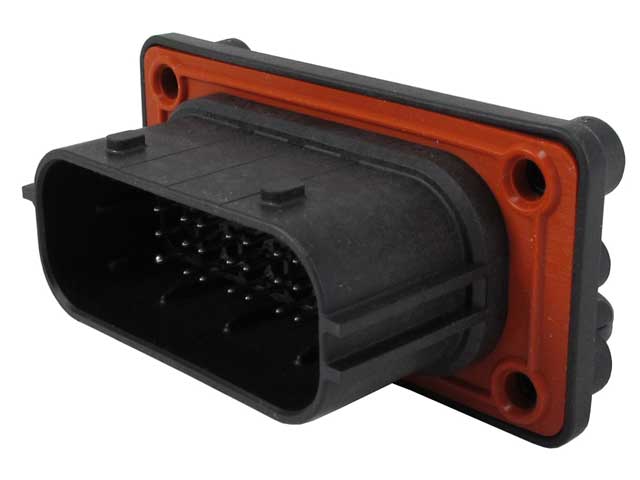

SRK13-MDA-32A-001
DeutschCatalogue item

SRK13-MDA-32A-001

Generally high availability — ask for current lead time
No. of cavities
32
Color
Black
Connector Style
Receptacle
Flange/In-line/PCB Mount
PCB
Holds Pin/Socket
Pin
keyed
Yes, A key
Request a quoteCall usEmail

Additional information

No. of cavities32
ColorBlack
Connector StyleReceptacle
Flange/In-line/PCB MountPCB
Holds Pin/SocketPin
keyedYes, A key
MaterialPlastic
SeriesSTRIKE Series
ShapeRectangular
Shell SizeMed. Shell
Special Features90 degrees molded pins
Wire Size16, 20

Mating connectors

SRK06-MDA-32A-001
SRK06-MDA-32A-001

Drawings

Customer View Model (PDF)3D_CVM_CVM_SRK13-MDA-32A-001_99_c-srk13-mda-32a-001-99-3d.pdfProduct Drawing (PDF)ENG_CD_SRK13-MDX-32A-001_-.pdfCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_SRK13-MDA-32A-001_99_c-srk13-mda-32a-001-99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_SRK13-MDA-32A-001_99_c-srk13-mda-32a-001-99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_SRK13-MDA-32A-001_99_c-srk13-mda-32a-001-99.3d_stp.zip

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
