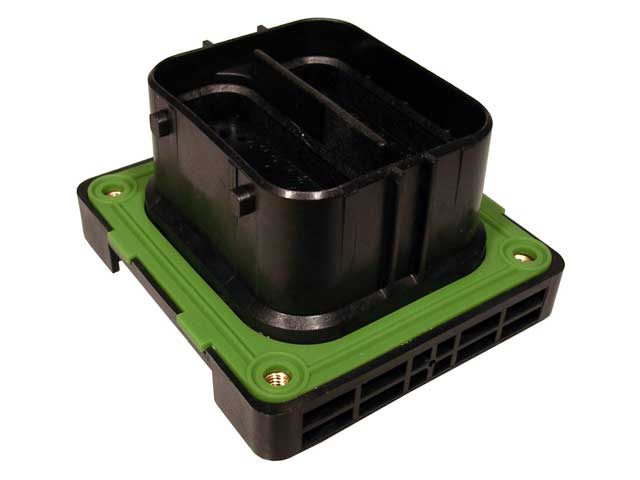

SRK02-FLA-64A-001
DeutschCatalogue item

SRK02-FLA-64A-001

Generally high availability — ask for current lead time
No. of cavities
64
Color
Black
Connector Style
Receptacle
Flange/In-line/PCB Mount
Flange, In-line
Holds Pin/Socket
Pin
Insulation
(#16).061-.120 [1.55-3.05], (#20).061-.095 [1.55-2.41]
Request a quoteCall usEmail

Additional information

No. of cavities64
ColorBlack
Connector StyleReceptacle
Flange/In-line/PCB MountFlange, In-line
Holds Pin/SocketPin
Insulation(#16).061-.120 [1.55-3.05], (#20).061-.095 [1.55-2.41]
keyedYes, A key
MaterialPlastic
SeriesSTRIKE Series
ShapeRectangular
Shell SizeFull shell
Special FeaturesNo cable attachment
Wire Size14, 16, 18, 20, 22

Mating connectors

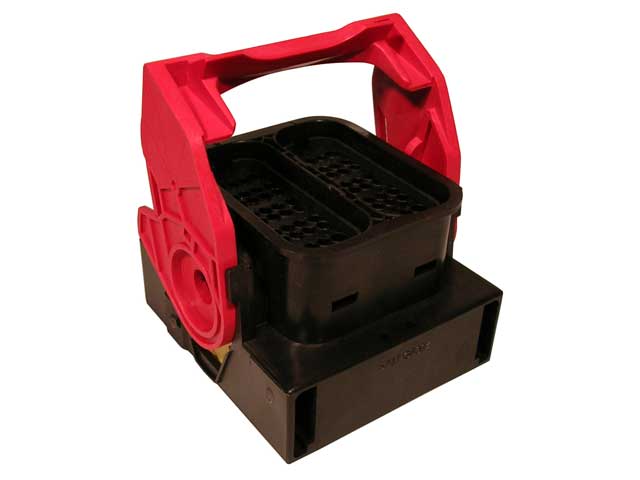

SRK06-FLA-64A-001
SRK06-FLA-64A-001

Required components

TPA Included

Accessories

0413-003-1605
0413-003-1605
0413-204-2005
0413-204-2005
SRK-BS-FL-90-001
SRK-BS-FL-90-001
SRK-BS-FL-ST-001

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
