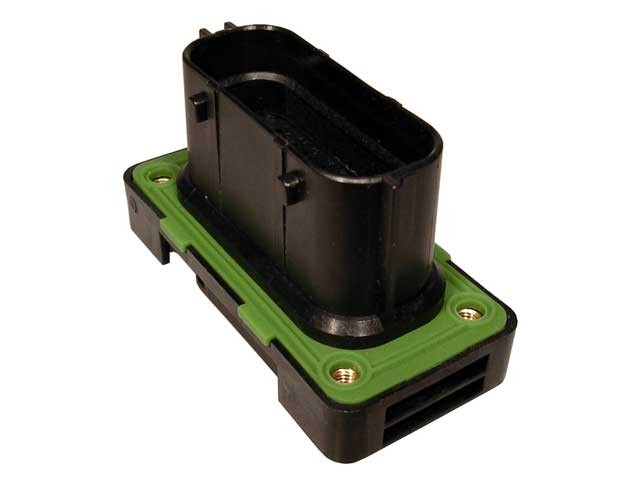

SRK02-MDA-32A-001
SRKDeutsch

SRK02-MDA-32A-001

SRK Series

Generally high availability — ask for current lead time
Cavities
32
Wire size (AWG)
14, 16, 18, 20, 22
Color
Black
Required wedgelock
TPA Included
Request a quoteCall usEmail

Technical specifications

SeriesSTRIKE Series
BrandDeutsch
No. of cavities32
Part NumberSRK02-MDA-32A-001
Flange/In-line/PCB MountFlange, In-line
keyedYes, A key
ShapeRectangular
MaterialPlastic
Connector StyleReceptacle
Holds Pin/SocketPin
Special FeaturesNo cable attachment
Insulation(#16).061-.120 [1.55-3.05], (#20).061-.095 [1.55-2.41]
Wire Size14, 16, 18, 20, 22
Required WedgelockTPA Included
Shell SizeMed. shell
ColorBlack

Mating connectors

SRK06-MDA-32A-001
SRK06-MDA-32A-001

Required components

Must be ordered together with the housing.

TPA Included

Accessories

0413-003-1605
0413-003-1605
0413-204-2005
0413-204-2005
SRK-BS-MD-90-001
SRK-BS-MD-90-001
SRK-BS-MD-ST-001
SRK-BS-MD-ST-001
