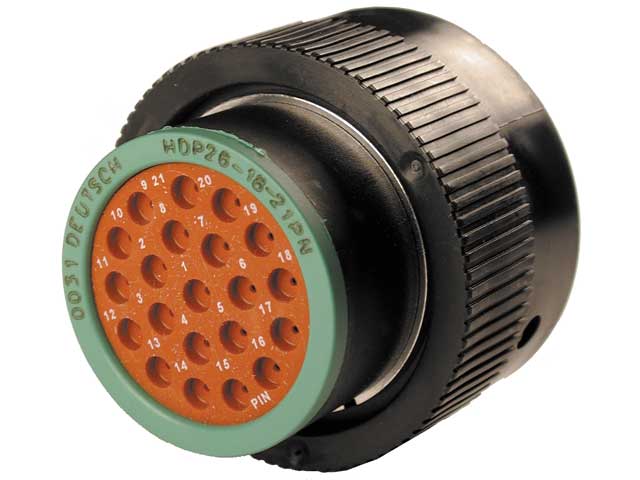

HDP26-18-21PN
HDPDeutsch

HDP26-18-21PN

HDP Heavy Power Series · Size 20 contacts

Generally high availability — ask for current lead time
Cavities
21
Contact size
20
Series
HDP Heavy Power Series
Current rating
7.5
Wire size
16, 18, 20, 22
Color
Black
Request a quoteCall usEmail

Technical specifications

No. of cavities21
ColorBlack
Connector StylePlug
Contact Size20
Current Rating7.5
Flange/In-line/PCB MountIn-line
Holds Pin/SocketPin
Insulation.040-.095 [1.02-2.41]
keyedNo
MaterialPlastic
Seal SizeN seal
SeriesHDP20 Series
ShapeCircular
Shell Size18 shell
Special FeaturesReverse
Wire Size16, 18, 20, 22

Compatible contacts

0460-202-20141
0460-202-20141
0460-202-2031
0460-202-2031
1060-20-0122
1060-20-0122
1060-20-0144
1060-20-0144

Mating connectors

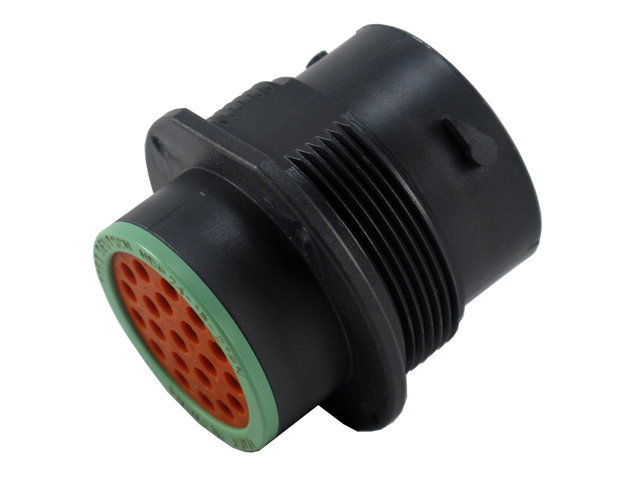

HDP24-18-21SN
HDP24-18-21SN

Accessories

0411-240-2005
0411-240-2005
0413-204-2005
0413-204-2005
HD30-18BT-90-BK
HD30-18BT-90-BK
HD30-18BT-BK
HD30-18BT-BK

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
tifProduct Drawing (TIF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)
