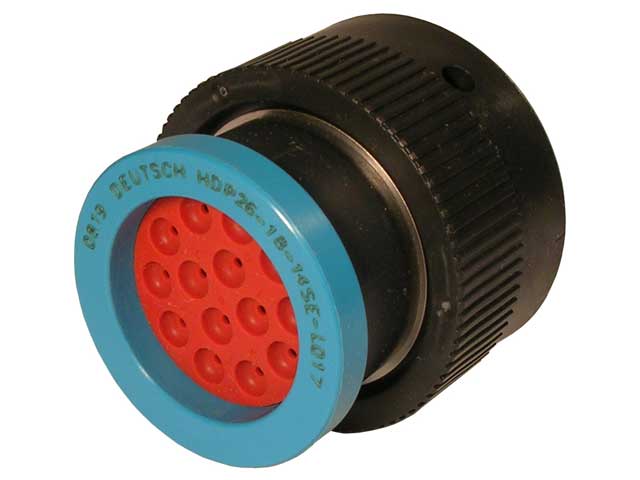

HDP26-18-14SE-L017
HDPDeutsch

HDP26-18-14SE-L017

HDP Heavy Power Series · Size 16 contacts

Generally high availability — ask for current lead time
Cavities
14
Contact size
16
Series
HDP Heavy Power Series
Current rating
13
Wire size
14, 16, 18, 20
Color
Black
Request a quoteCall usEmail

Technical specifications

No. of cavities14
ColorBlack
Connector StylePlug
Contact Size16
Current Rating13
Flange/In-line/PCB MountIn-line
Holds Pin/SocketSocket
Insulation.053-.120 [1.35-3.05]
keyedNo
MaterialPlastic
ModificationRing Adapter
Seal SizeE seal
SeriesHDP20 Series
ShapeCircular
Shell Size18 shell
Wire Size14, 16, 18, 20

Compatible contacts

0462-201-16141
0462-201-16141
0462-201-1631
0462-201-1631
1062-16-0122
1062-16-0122
1062-16-0144
1062-16-0144

Accessories

0411-336-1605
0411-336-1605
114017
114017

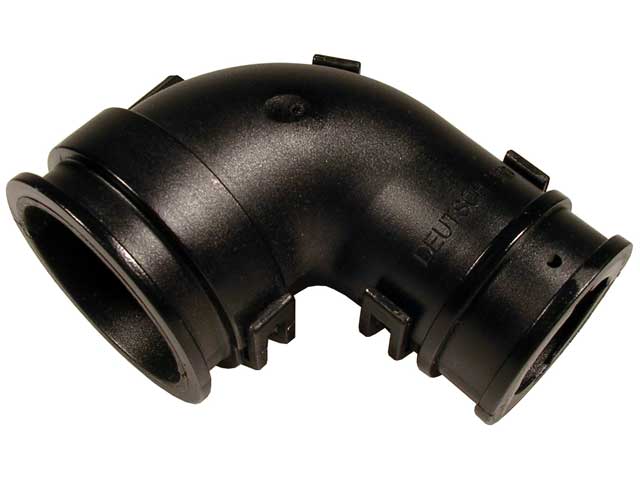

2428-015-1805
2428-015-1805
2428-016-1805
2428-016-1805

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
tifProduct Drawing (TIF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
