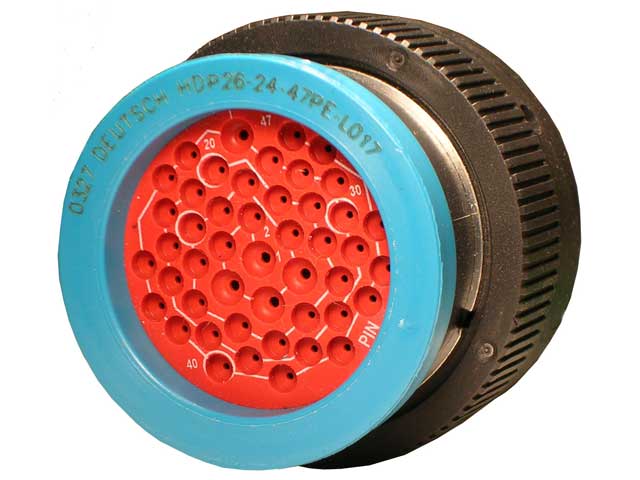

HDP24-24-47SE-L017

HDP Heavy Power Series

Generally high availability — ask for current lead time
Cavities
47
Series
HDP Heavy Power Series
Wire size
14, 16, 18, 20, 22
Color
Black
Request a quoteCall usEmail

Technical specifications

No. of cavities47
ColorBlack
Connector StyleReceptacle
Flange/In-line/PCB MountFlange, In-line
Holds Pin/SocketSocket
Insulation(#16).053-.103 [1.35-2.62], (#20).040-.083 [1.01-2.10]
keyedNo
MaterialPlastic
ModificationRing Adapter
Seal SizeE seal
SeriesHDP20 Series
ShapeCircular
Shell Size24 shell
Special FeaturesReverse
Wire Size14, 16, 18, 20, 22

Compatible contacts

0462-201-16141
0462-201-16141
0462-201-1631
0462-201-1631
0462-201-20141
0462-201-20141
0462-201-2031
0462-201-2031

Mating connectors

HDP26-24-47PE-L017
HDP26-24-47PE-L017

Accessories

2411-001-2405
2411-001-2405
2414-001-2486
2414-001-2486
2428-008-2405
2428-008-2405
2428-011-2405
2428-011-2405

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
tifProduct Drawing (TIF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)
