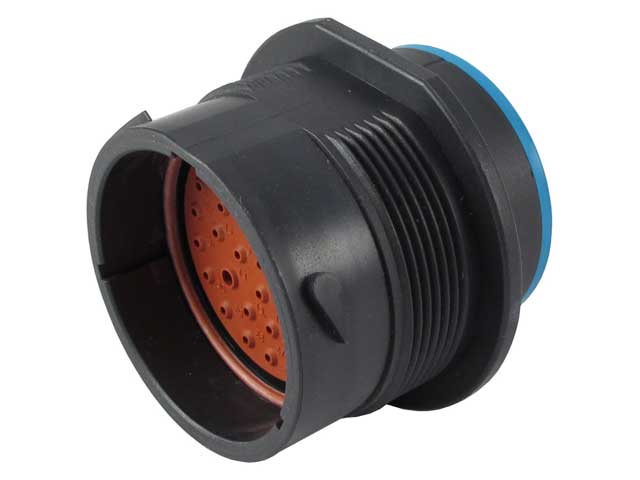

HDP24-24-35PE
HDPDeutsch

HDP24-24-35PE

HDP Heavy Power Series

Generally high availability — ask for current lead time
Series
HDP Heavy Power Series
Wire size
14, 16, 18, 20, 22
Color
Black
Request a quoteCall usEmail

Technical specifications

ColorBlack
Connector StyleReceptacle
Flange/In-line/PCB MountFlange, In-line
Holds Pin/SocketPin
Insulation(#16).053-.103 [1.35-2.62], (#20).040-.083 [1.01-2.10]
keyedNo
MaterialPlastic
Seal SizeE seal
SeriesHDP20 Series
ShapeCircular
Shell Size24 shell
Wire Size14, 16, 18, 20, 22

Compatible contacts

0460-202-16141
0460-202-16141
0460-202-1631
0460-202-1631
0460-202-20141
0460-202-20141
0460-202-2031
0460-202-2031

Accessories

2411-001-2405
2411-001-2405
2414-001-2486
2414-001-2486
HD30-24BT-BK
HD30-24BT-BK
HDC26-24
HDC26-24

Drawings & CAD files

pdfCustomer View Model (PDF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)
