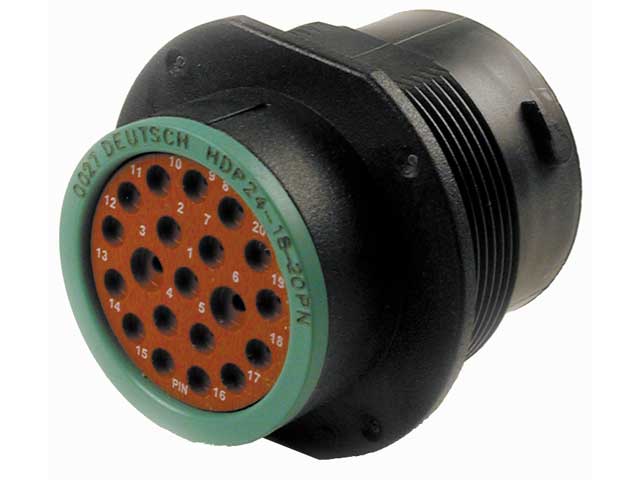

HDP24-18-20PN
HDPDeutsch

HDP24-18-20PN

HDP Heavy Power Series

Generally high availability — ask for current lead time
Cavities
20
Series
HDP Heavy Power Series
Wire size
14, 16, 18, 20, 22
Color
Black
Request a quoteCall usEmail

Technical specifications

No. of cavities20
ColorBlack
Connector StyleReceptacle
Flange/In-line/PCB MountFlange, In-line
Holds Pin/SocketPin
Insulation(#16).100-.134 [2.54-3.40], (#20).040-.095 [1.02-2.41]
keyedNo
MaterialPlastic
Seal SizeN seal
SeriesHDP20 Series
ShapeCircular
Shell Size18 shell
Wire Size14, 16, 18, 20, 22

Compatible contacts

0460-202-16141
0460-202-16141
0460-202-1631
0460-202-1631
0460-202-20141
0460-202-20141
0460-202-2031
0460-202-2031

Mating connectors

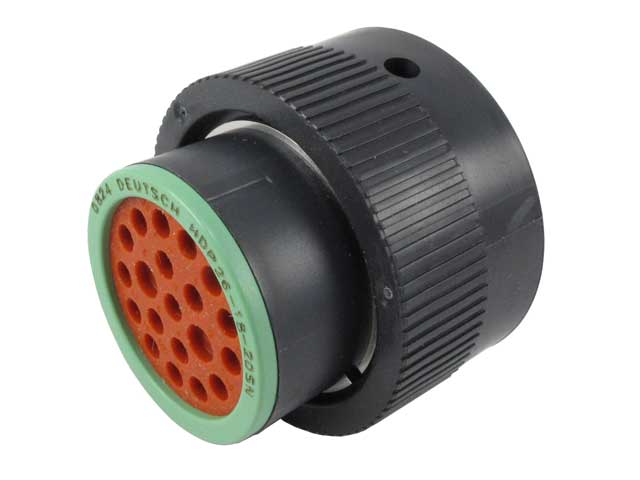

HDP26-18-20SN
HDP26-18-20SN

Accessories

2411-002-1805
2411-002-1805
2414-002-1886
2414-002-1886
HD30-18BT-BK
HD30-18BT-BK
HDC26-18
HDC26-18

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
tifProduct Drawing (TIF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)
