HDBOX-24-91PN
HDBOXDeutsch

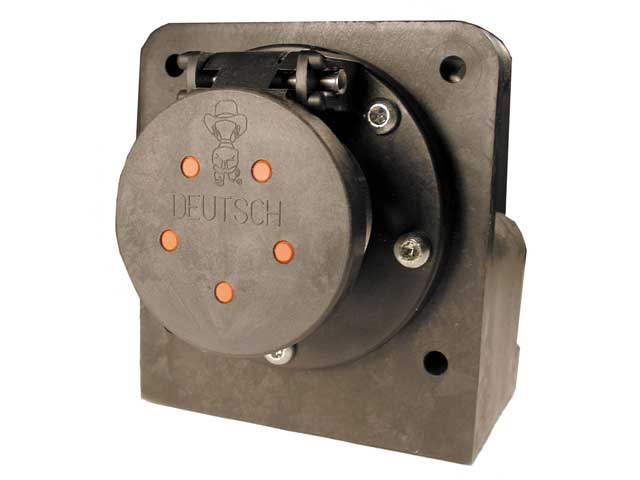

Deutsch HDBOX-24-91PN, HDBOX Series, connector, for wire processing

HDBOX Series

Generally high availability — ask for current lead time
Cavities
15
Series
HDBOX Series
Wire size
8, 10, 12, 14
Color
Black
Request a quoteCall usEmail

Technical specifications

No. of cavities15
ColorBlack
Holds Pin/SocketPin
Insulation(#8).190-.240 [4.83-6.10], (#12).134-.170 [3.40-4.32]
keyedNo
MaterialPlastic
Seal SizeN seal
SeriesHD30 Series
ShapeSpecial
Shell Size24 shell
Special FeaturesHouses HD34-24-91PN, DT13-2P, DT13-4P
Wire Size8, 10, 12, 14

Mating connectors

DT06-2S-EP06
DT06-2S-EP06
DT06-4S-EP06
DT06-4S-EP06

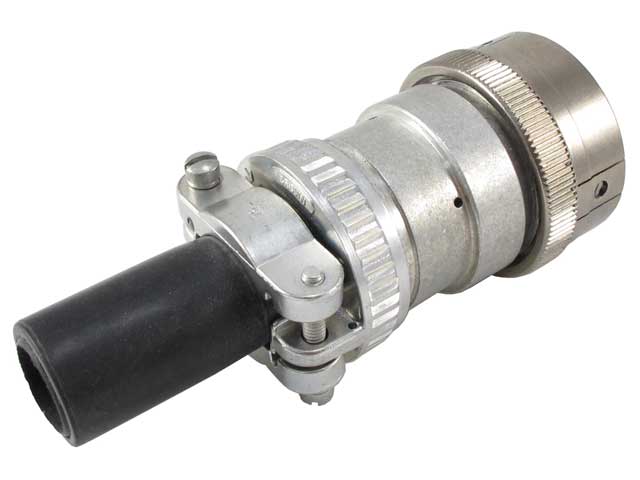

HDB36-24-91SN-059
HDB36-24-91SN-059

Drawings & CAD files

pdfProduct Drawing (PDF)
tifProduct Drawing (TIF)
