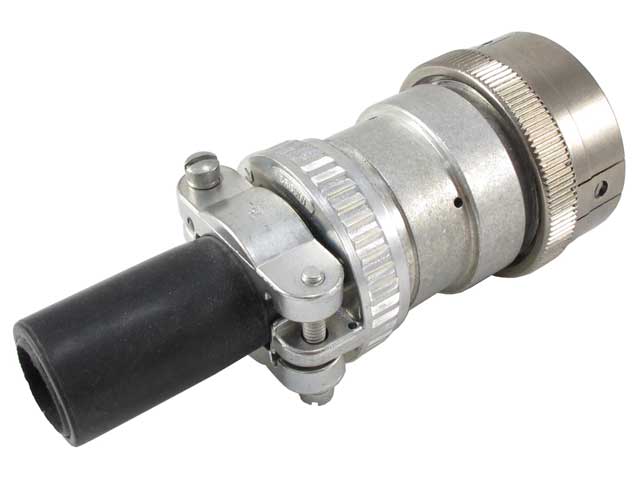

HDB36-24-9PN-059
HDBDeutsch

HDB36-24-9PN-059

HDB

Generally high availability — ask for current lead time
Cavities
9
Series
HDB
Wire size
6, 8, 10, 14, 16, 18, 20
Color
Silver
Request a quoteCall usEmail

Technical specifications

No. of cavities9
ColorSilver
Connector StylePlug
Flange/In-line/PCB MountIn-line
Holds Pin/SocketPin
Insulation(#4).280-.292 [7.11-7.42], (#8).190-.240 [4.83-6.10], (#16).100-.134 [2.54-3.40]
keyedNo
MaterialAluminum
ModificationCable Clamp
Seal SizeN seal
SeriesHD30 Series
ShapeCircular
Shell Size24 shell
Special FeaturesReverse, breakaway
Wire Size6, 8, 10, 14, 16, 18, 20

Compatible contacts

0460-204-0490
0460-204-0490
0460-204-08141
0460-204-08141
0460-204-12141
0460-204-12141
0460-220-1231
0460-220-1231

Mating connectors

HD34-24-9SN
HD34-24-9SN
HD34-24-9SN-059
HD34-24-9SN-059
HD34-24-9SN-072
HD34-24-9SN-072

Accessories

HDC34-24
HDC34-24
