HDBDeutsch

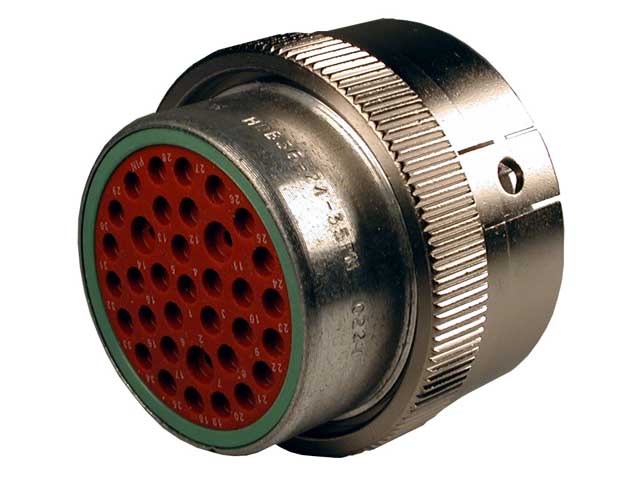

HDB36-24-35PN
HDB
Generally high availability — ask for current lead time
Series
HDB
Wire size
14, 16, 18, 20, 22
Color
Silver
Technical specifications
| Color | Silver |
| Connector Style | Plug |
| Flange/In-line/PCB Mount | In-line |
| Holds Pin/Socket | Pin |
| Insulation | (#16).100-.134 [2.54-3.40], (#20).040-.095 [1.02-2.41] |
| keyed | No |
| Material | Aluminum |
| Seal Size | N seal |
| Series | HD30 Series |
| Shape | Circular |
| Shell Size | 24 shell |
| Special Features | Reverse, breakaway |
| Wire Size | 14, 16, 18, 20, 22 |
Compatible contacts
Mating connectors
Accessories
About the manufacturer
DEUTSCHDEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
