HDB36-24-33PN-059
HDBDeutsch

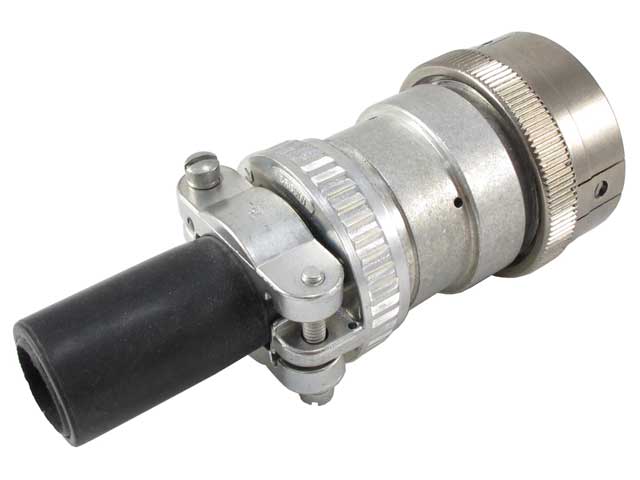

HDB36-24-33PN-059

HDB · Size 20 contacts

Generally high availability — ask for current lead time
Cavities
33
Contact size
20
Series
HDB
Current rating
7.5
Wire size
16-22 AWG
Color
Silver
Request a quoteCall usEmail

Technical specifications

No. of cavities33
ColorSilver
Connector StylePlug
Contact Size20
Current Rating7.5
Flange/In-line/PCB MountIn-line
Holds Pin/SocketPin
Insulation.040-.095 [1.02-2.41]
keyedNo
MaterialAluminum
ModificationCable Clamp
Seal SizeN seal
SeriesHD30 Series
ShapeCircular
Shell Size24 shell
Special FeaturesReverse, breakaway
Wire Size16-22 AWG

Compatible contacts

0460-202-20141
0460-202-20141
0460-202-2031
0460-202-2031
1060-20-0122
1060-20-0122
1060-20-0144
1060-20-0144

Mating connectors

HD34-24-33SN
HD34-24-33SN
HD34-24-33SN-059
HD34-24-33SN-059
HD34-24-33SN-072
HD34-24-33SN-072

Accessories

HDC34-24
HDC34-24

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
