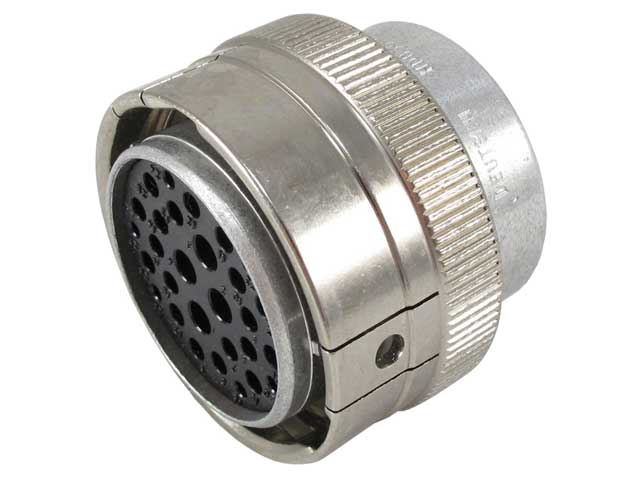

HDB36-24-29SE
HDBDeutsch

HDB36-24-29SE

HDB

Generally high availability — ask for current lead time
Cavities
29
Series
HDB
Wire size
10, 12, 14, 16, 18, 20, 22
Color
Silver
Request a quoteCall usEmail

Technical specifications

No. of cavities29
ColorSilver
Connector StylePlug
Flange/In-line/PCB MountIn-line
Holds Pin/SocketSocket
Insulation(#12).097-.158 [2.46-4.01], (#16).053-.103 [1.35-2.62], (#20).040-.083 [1.01-2.10]
keyedNo
MaterialAluminum
Seal SizeE seal
SeriesHD30 Series
ShapeCircular
Shell Size24 shell
Special FeaturesBreakaway
Wire Size10, 12, 14, 16, 18, 20, 22

Compatible contacts

0462-201-16141
0462-201-16141
0462-201-20141
0462-201-20141
0462-201-2031
0462-201-2031
0462-203-12141
0462-203-12141

Mating connectors

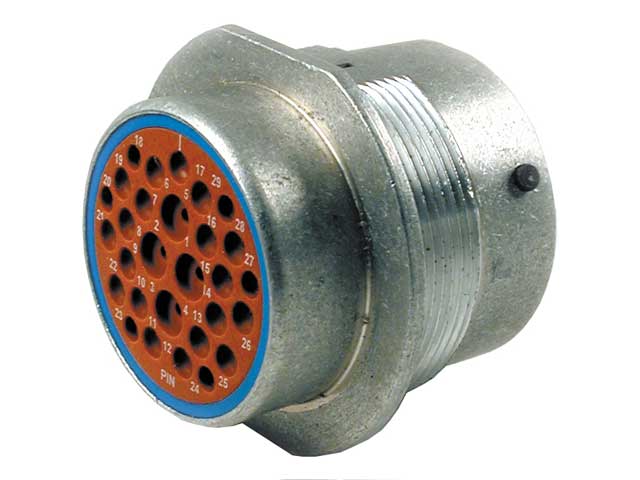

HD34-24-29PE
HD34-24-29PE

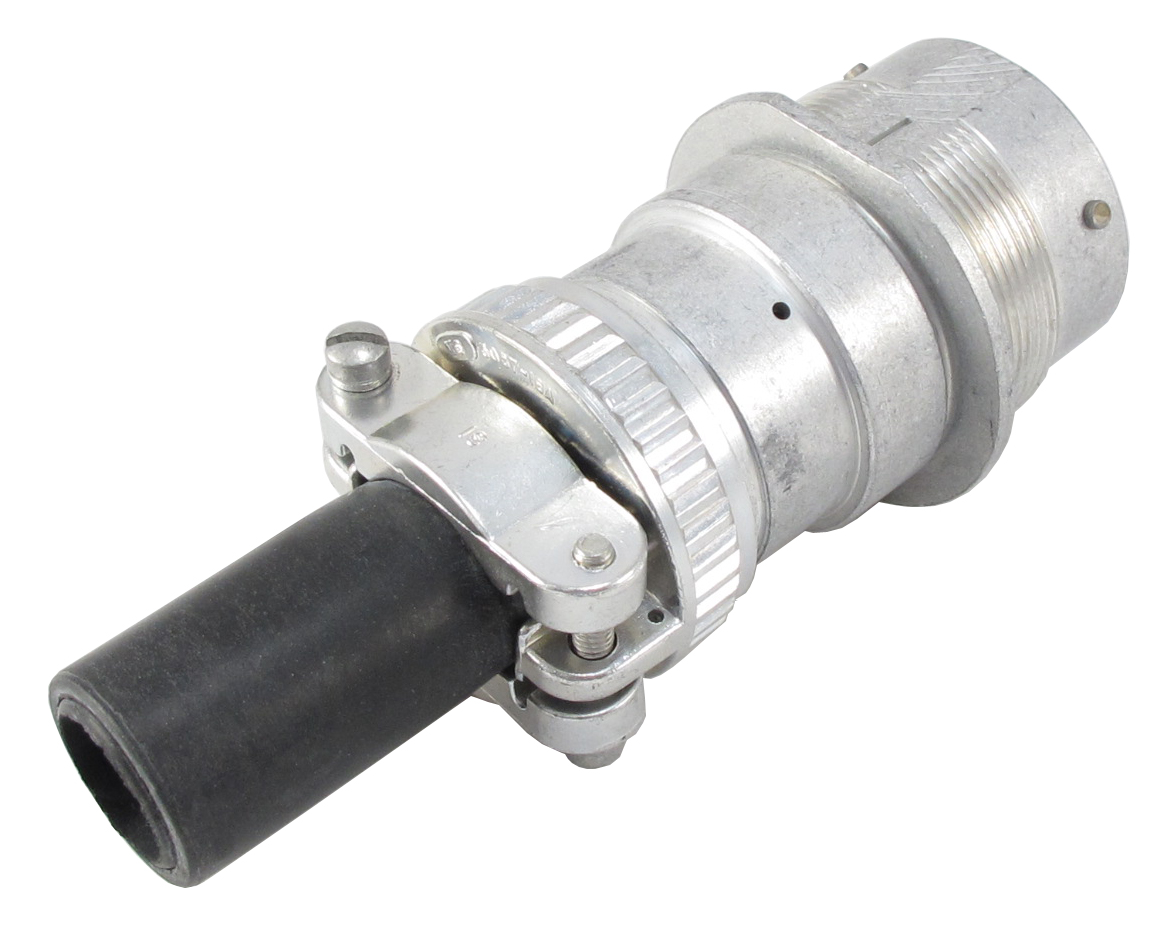

HD34-24-29PE-059
HD34-24-29PE-059

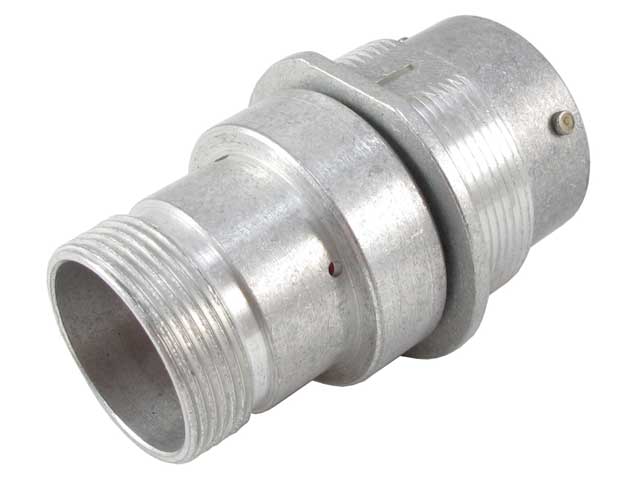

HD34-24-29PE-072
HD34-24-29PE-072

Accessories

HD30-24BT
HD30-24BT
HDC34-24
HDC34-24
WHDS-24-1
WHDS-24-1
WHDS-24-2
WHDS-24-2

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
