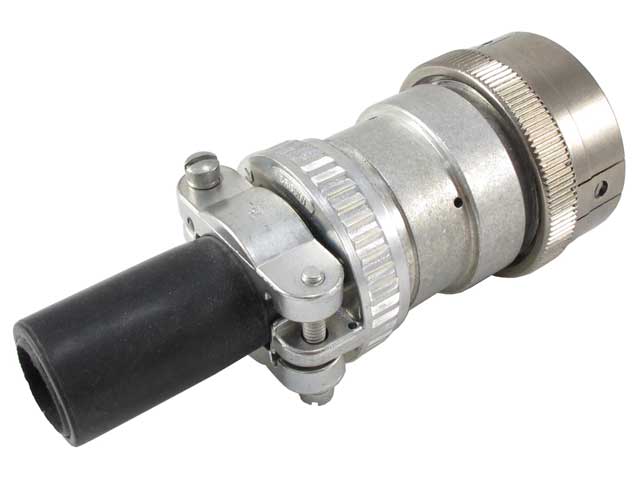

HDB36-24-21SE-059
HDBDeutsch

HDB36-24-21SE-059

HDB

Generally high availability — ask for current lead time
Cavities
21
Series
HDB
Wire size
10, 12, 14, 16, 18, 20
Color
Silver
Request a quoteCall usEmail

Technical specifications

No. of cavities21
ColorSilver
Connector StylePlug
Flange/In-line/PCB MountIn-line
Holds Pin/SocketSocket
Insulation(#12).097-.158 [2.46-4.01], (#16).053-.120 [1.35-3.05]
keyedNo
MaterialAluminum
ModificationCable Clamp
Seal SizeE seal
SeriesHD30 Series
ShapeCircular
Shell Size24 shell
Special FeaturesBreakaway
Wire Size10, 12, 14, 16, 18, 20

Compatible contacts

0462-201-16141
0462-201-16141
0462-201-1631
0462-201-1631
0462-203-12141
0462-203-12141
0462-210-1231
0462-210-1231

Mating connectors

HD34-24-21PE
HD34-24-21PE
HD34-24-21PE-059
HD34-24-21PE-059
HD34-24-21PE-072
HD34-24-21PE-072

Accessories

HDC34-24
HDC34-24

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
