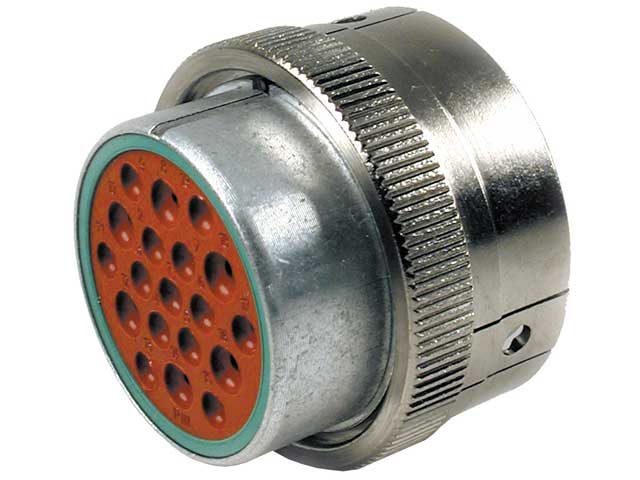

HDB36-24-19PN
HDBDeutsch

HDB36-24-19PN

HDB

Generally high availability — ask for current lead time
Cavities
19
Series
HDB
Wire size
10, 12, 14, 16, 18, 20
Color
Silver
Request a quoteCall usEmail

Technical specifications

No. of cavities19
ColorSilver
Connector StylePlug
Flange/In-line/PCB MountIn-line
Holds Pin/SocketPin
Insulation(#12).134-.170 [3.40-4.32], (#16).100-.134 [2.54-3.40]
keyedNo
MaterialAluminum
Seal SizeN seal
SeriesHD30 Series
ShapeCircular
Shell Size24 shell
Special FeaturesReverse, breakaway
Wire Size10, 12, 14, 16, 18, 20

Compatible contacts

0460-202-16141
0460-202-16141
0460-202-1631
0460-202-1631
0460-204-12141
0460-204-12141
0460-220-1231
0460-220-1231

Mating connectors

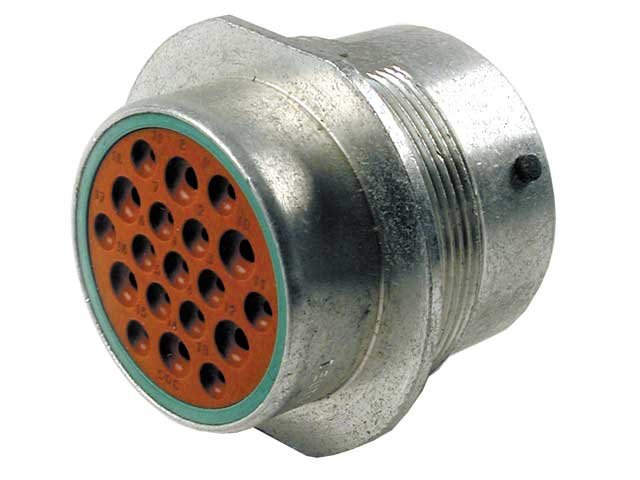

HD34-24-19SN
HD34-24-19SN

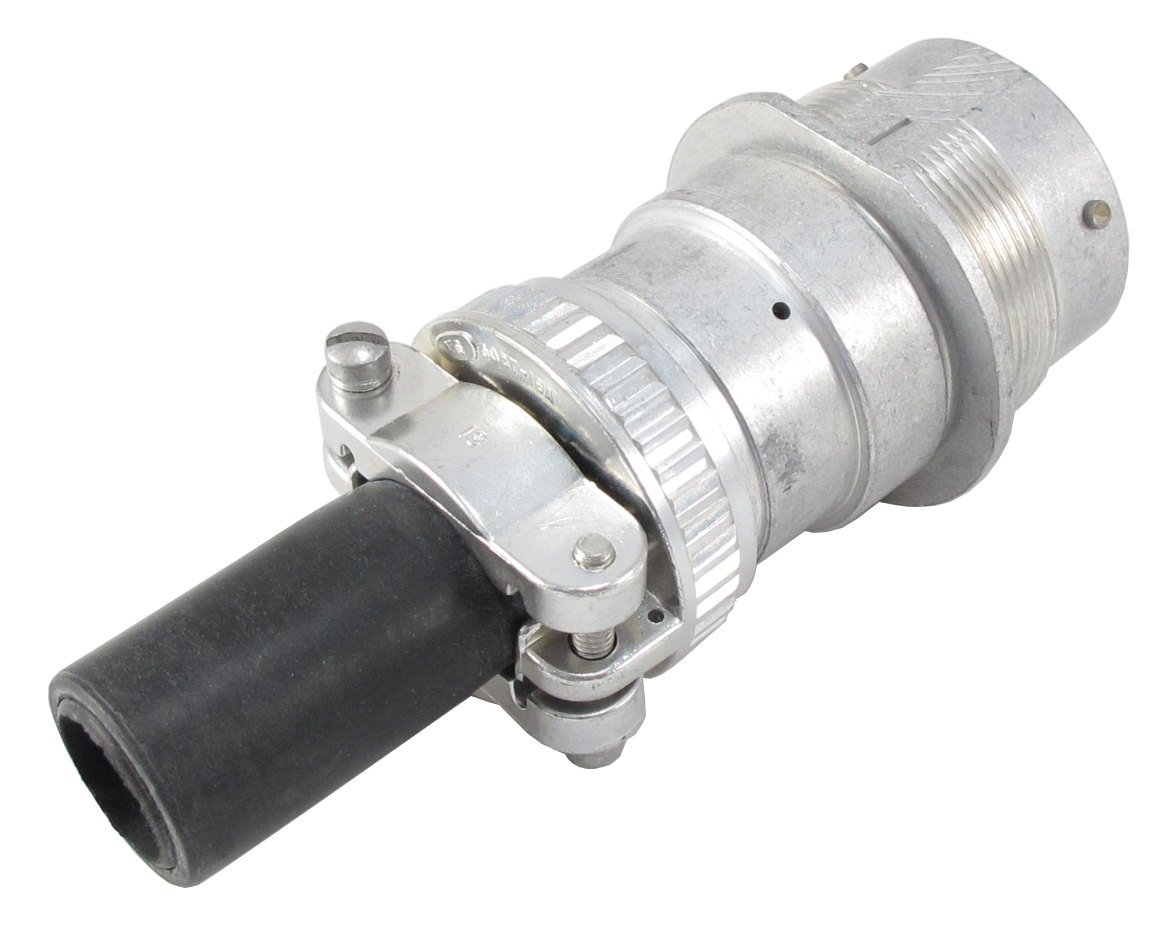

HD34-24-19SN-059
HD34-24-19SN-059

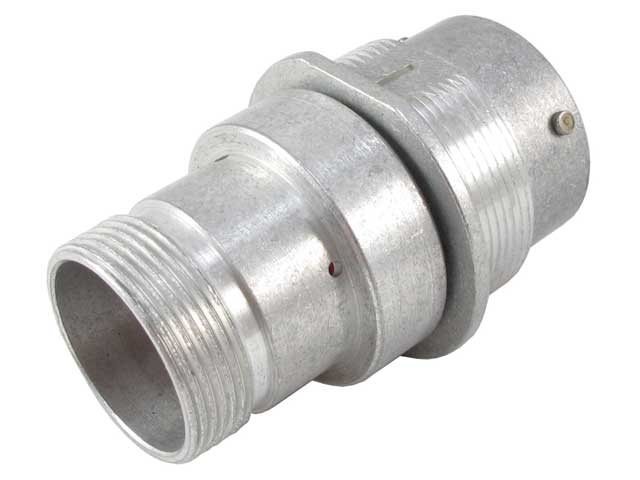

HD34-24-19SN-072
HD34-24-19SN-072

Accessories

HD30-24BT
HD30-24BT
HDC34-24
HDC34-24
WHDS-24-1
WHDS-24-1
WHDS-24-2
WHDS-24-2

Drawings & CAD files

pdfProduct Drawing (PDF)
tifProduct Drawing (TIF)
