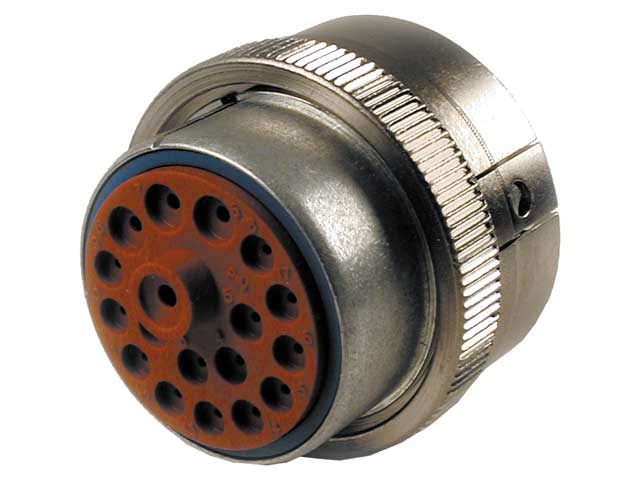

HDB36-24-18PE
HDBDeutsch

HDB36-24-18PE

HDB

Generally high availability — ask for current lead time
Cavities
18
Series
HDB
Wire size
8, 10, 12, 14, 16, 18, 20
Color
Silver
Request a quoteCall usEmail

Technical specifications

No. of cavities18
ColorSilver
Connector StylePlug
Flange/In-line/PCB MountIn-line
Holds Pin/SocketPin
Insulation(#8).135-.220 [3.43-5.59], (#12).097-.158 [2.46-4.01], (#16).053-.120 [1.35-3.05]
keyedNo
MaterialAluminum
Seal SizeE seal
SeriesHD30 Series
ShapeCircular
Shell Size24 shell
Special FeaturesReverse, breakaway
Wire Size8, 10, 12, 14, 16, 18, 20

Compatible contacts

0460-202-16141
0460-202-16141
0460-202-1631
0460-202-1631
0460-204-08141
0460-204-08141
0460-204-12141
0460-204-12141

Mating connectors

HD34-24-18SE
HD34-24-18SE
HD34-24-18SE-059
HD34-24-18SE-059
HD34-24-18SE-072
HD34-24-18SE-072

Accessories

HD30-24BT
HD30-24BT
HDC34-24
HDC34-24
WHDS-24-1
WHDS-24-1
WHDS-24-2
WHDS-24-2

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
