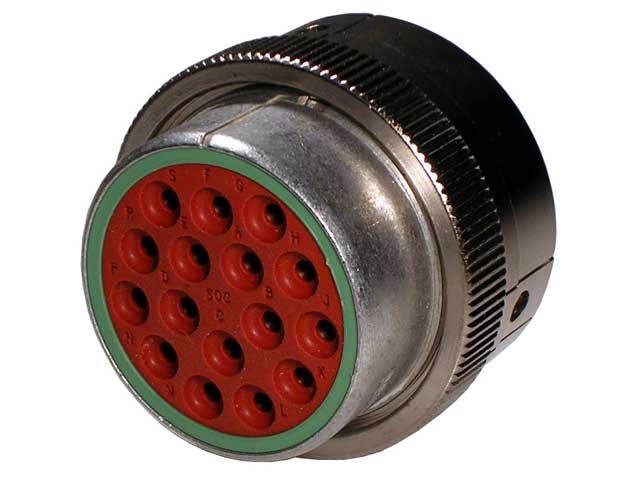

HDB36-24-16SN
HDBDeutsch

HDB36-24-16SN

HDB · Size 12 contacts

Generally high availability — ask for current lead time
Cavities
16
Contact size
12
Series
HDB
Current rating
25
Wire size
10, 12, 14
Color
Silver
Request a quoteCall usEmail

Technical specifications

No. of cavities16
ColorSilver
Connector StylePlug
Contact Size12
Current Rating25
Flange/In-line/PCB MountIn-line
Holds Pin/SocketSocket
Insulation.134-.170 [3.40-4.32]
keyedNo
MaterialAluminum
Seal SizeN seal
SeriesHD30 Series
ShapeCircular
Shell Size24 shell
Special FeaturesBreakaway
Wire Size10, 12, 14

Compatible contacts

0462-203-12141
0462-203-12141
0462-210-1231
0462-210-1231
1062-12-0144
1062-12-0144
1062-12-0166
1062-12-0166

Mating connectors

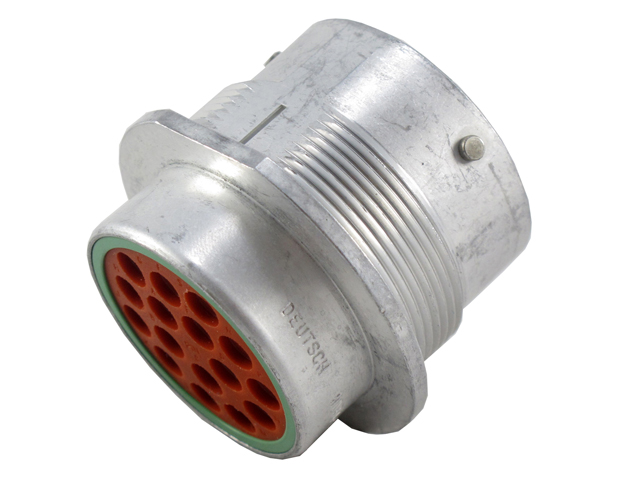

HD34-24-16PN
HD34-24-16PN

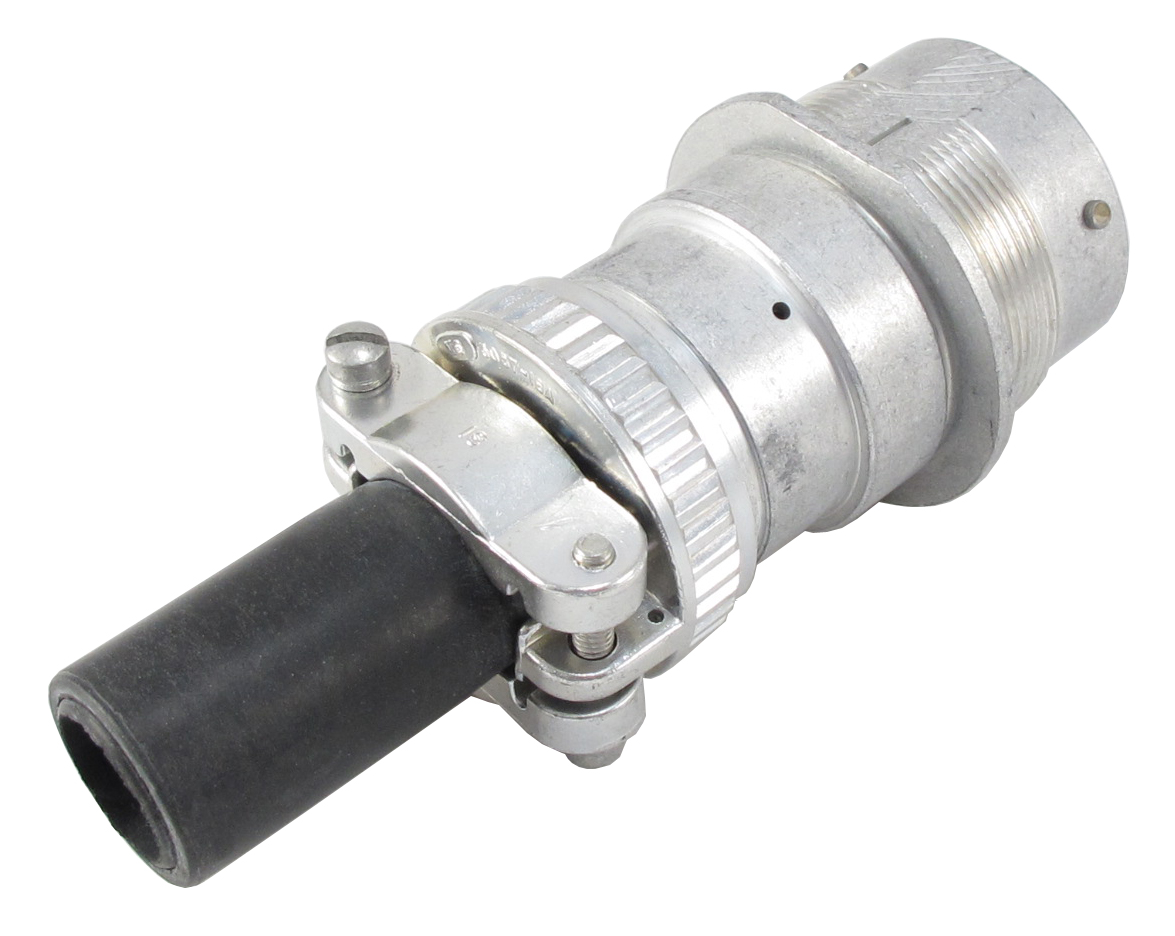

HD34-24-16PN-059
HD34-24-16PN-059

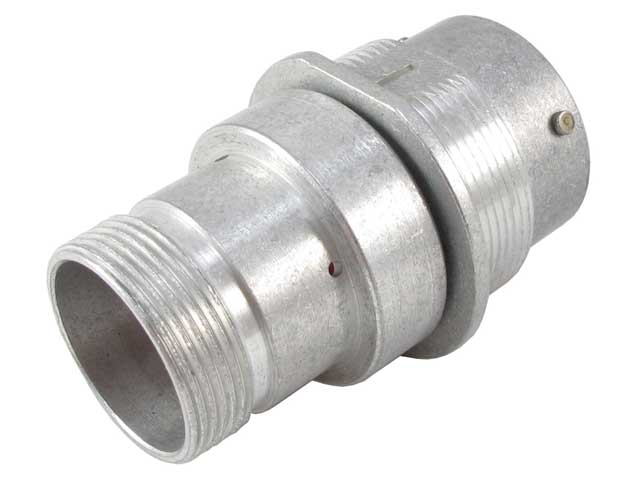

HD34-24-16PN-072
HD34-24-16PN-072

Accessories

HD30-24BT
HD30-24BT
HDC34-24
HDC34-24
WHDS-24-1
WHDS-24-1
WHDS-24-2
WHDS-24-2

Drawings & CAD files

pdfProduct Drawing (PDF)
tifProduct Drawing (TIF)
