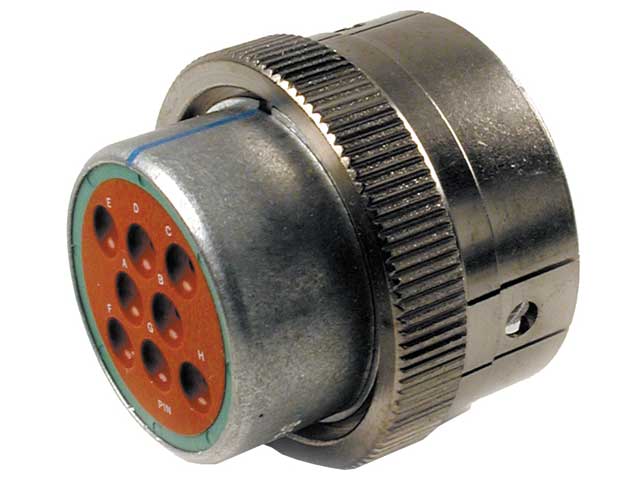

HDB36-18-8PN
HDBDeutsch

HDB36-18-8PN

HDB · Size 12 contacts

Generally high availability — ask for current lead time
Cavities
8
Contact size
12
Series
HDB
Current rating
25
Wire size
10, 12, 14
Color
Silver
Request a quoteCall usEmail

Technical specifications

No. of cavities8
ColorSilver
Connector StylePlug
Contact Size12
Current Rating25
Flange/In-line/PCB MountIn-line
Holds Pin/SocketPin
Insulation.134-.170 [3.40-4.32]
keyedNo
MaterialAluminum
Seal SizeN seal
SeriesHD30 Series
ShapeCircular
Shell Size18 shell
Special FeaturesReverse, breakaway
Wire Size10, 12, 14

Compatible contacts

0460-204-12141
0460-204-12141
0460-220-1231
0460-220-1231
1060-12-0144
1060-12-0144
1060-12-0166
1060-12-0166

Mating connectors

HD34-18-8SN
HD34-18-8SN
HD34-18-8SN-059
HD34-18-8SN-059
HD34-18-8SN-072
HD34-18-8SN-072

Accessories

HD30-18BT
HD30-18BT
HDC34-18
HDC34-18
WHDS-18-1
WHDS-18-1
WHDS-18-2
WHDS-18-2

Drawings & CAD files

pdfProduct Drawing (PDF)
tifProduct Drawing (TIF)

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
