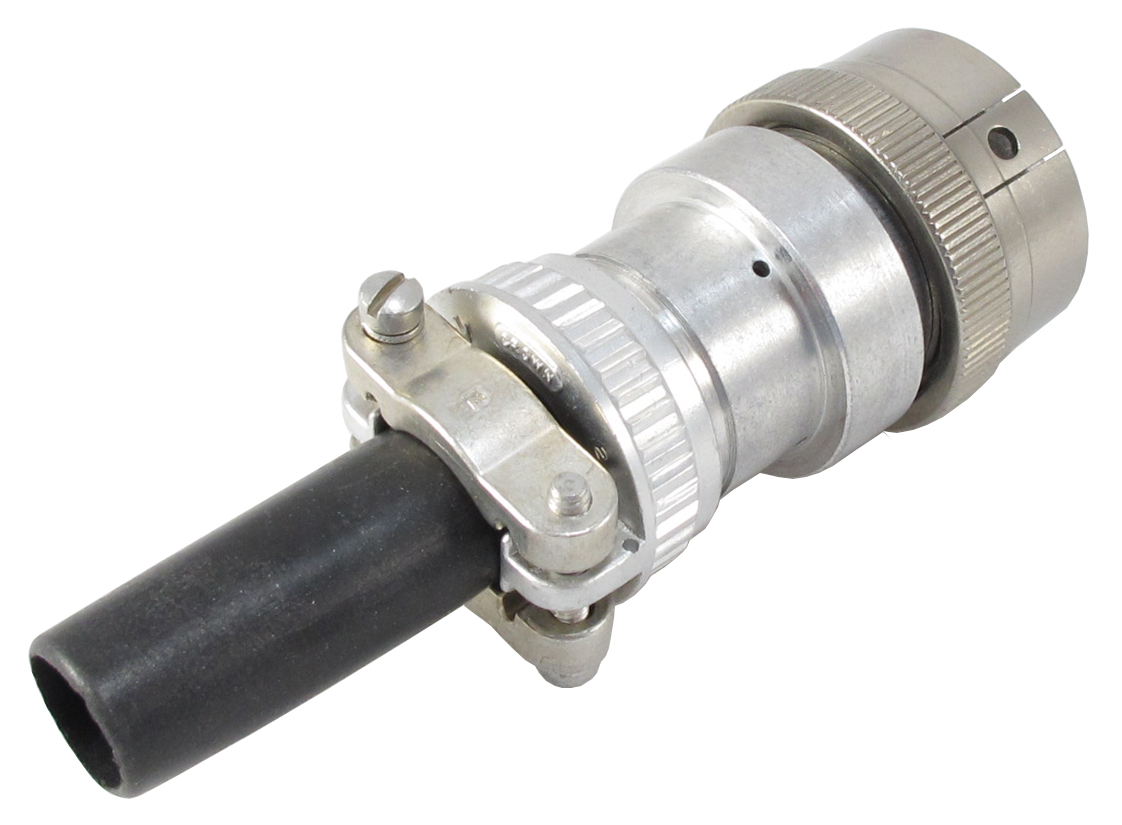

HDB36-18-20PN-059
HDBDeutsch

HDB36-18-20PN-059

HDB

Generally high availability — ask for current lead time
Cavities
20
Series
HDB
Wire size
14, 16, 18, 20, 22
Color
Silver
Request a quoteCall usEmail

Technical specifications

No. of cavities20
ColorSilver
Connector StylePlug
Flange/In-line/PCB MountIn-line
Holds Pin/SocketPin
Insulation(#16).100-.134 [2.54-3.40], (#20).040-.095 [1.02-2.41]
keyedNo
MaterialAluminum
ModificationCable Clamp
Seal SizeN seal
SeriesHD30 Series
ShapeCircular
Shell Size18 shell
Special FeaturesReverse, breakaway
Wire Size14, 16, 18, 20, 22

Compatible contacts

0460-202-16141
0460-202-16141
0460-202-1631
0460-202-1631
0460-202-20141
0460-202-20141
0460-202-2031
0460-202-2031

Mating connectors

HD34-18-14SN-072
HD34-18-14SN-072
HD34-18-20SN
HD34-18-20SN
HD34-18-20SN-059
HD34-18-20SN-059

Accessories

HDC34-18
HDC34-18

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
