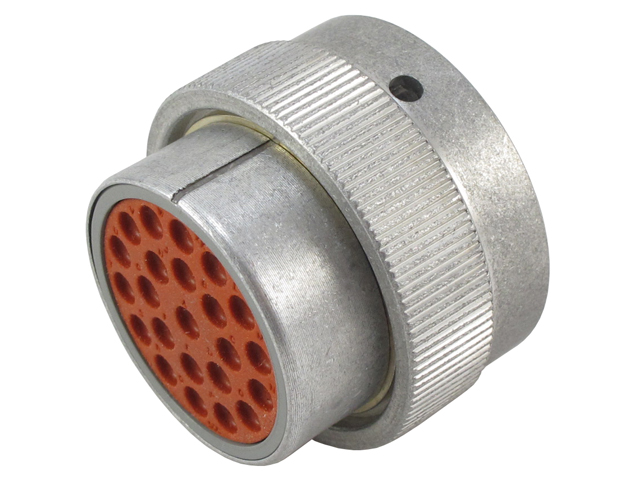

HD36-24-23ST-F001
HDDeutsch

HD36-24-23ST-F001

HD · Size 16 contacts

Generally high availability — ask for current lead time
Contact size
16
Series
HD
Current rating
13
Wire size
14, 16, 18, 20
Color
Silver
Request a quoteCall usEmail

Technical specifications

ColorSilver
Connector StylePlug
Contact Size16
Current Rating13
Flange/In-line/PCB MountIn-line
Holds Pin/SocketSocket
Insulation.088-.134 [2.24-3.68]
keyedNo
MaterialAluminum
Seal SizeT seal
SeriesHD30 Series
ShapeCircular
Shell Size24 shell
Wire Size14, 16, 18, 20

Compatible contacts

0462-201-16141
0462-201-16141
0462-201-1631
0462-201-1631
1062-16-0122
1062-16-0122
1062-16-0144
1062-16-0144

Drawings & CAD files

pdfProduct Drawing (PDF)
tifProduct Drawing (TIF)

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
