HD34-24-35PN
HDDeutsch

HD34-24-35PN

HD

Generally high availability — ask for current lead time
Series
HD
Wire size
14, 16, 28, 20, 22
Color
Silver
Request a quoteCall usEmail

Technical specifications

ColorSilver
Connector StyleReceptacle
Flange/In-line/PCB MountFlange, In-line
Holds Pin/SocketPin
Insulation(#16).100-.134 [2.54-3.40], (#20).040-.095 [1.02-2.41]
keyedNo
MaterialAluminum
Seal SizeN seal
SeriesHD30 Series
ShapeCircular
Shell Size24 shell
Wire Size14, 16, 28, 20, 22

Compatible contacts

0460-202-16141
0460-202-16141
0460-202-1631
0460-202-1631
0460-202-20141
0460-202-20141
0460-202-2031
0460-202-2031

Mating connectors

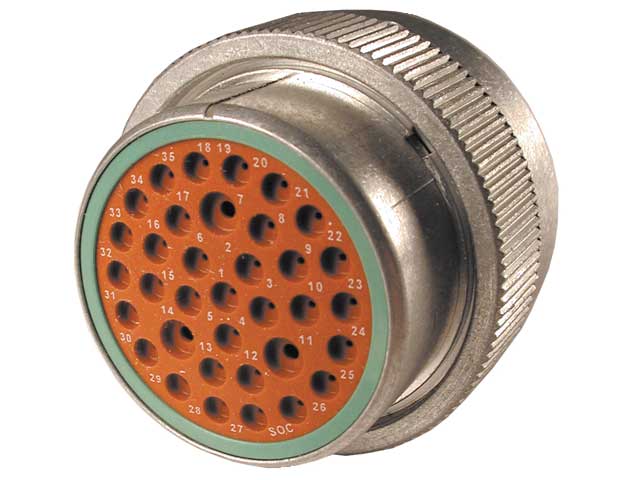

HD36-24-35SN
HD36-24-35SN

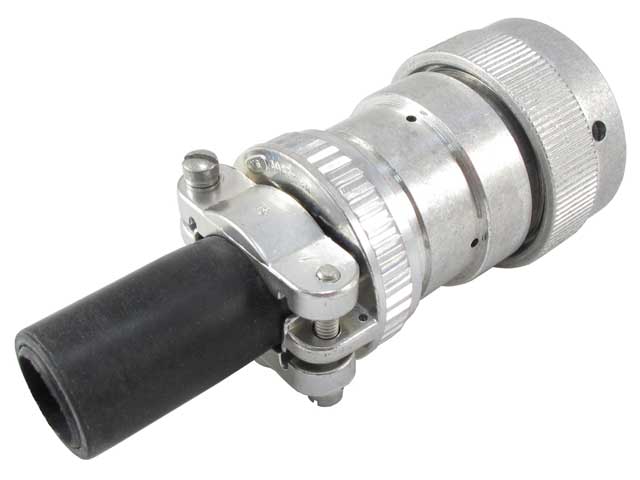

HD36-24-35SN-059
HD36-24-35SN-059

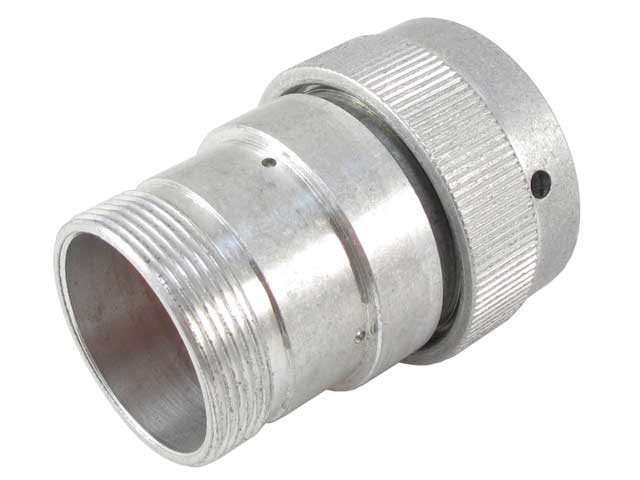

HD36-24-35SN-072
HD36-24-35SN-072

Accessories

112263-90
112263-90
112264
112264
HD30-24BT
HD30-24BT
HDC36-24
HDC36-24

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
tifProduct Drawing (TIF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)
