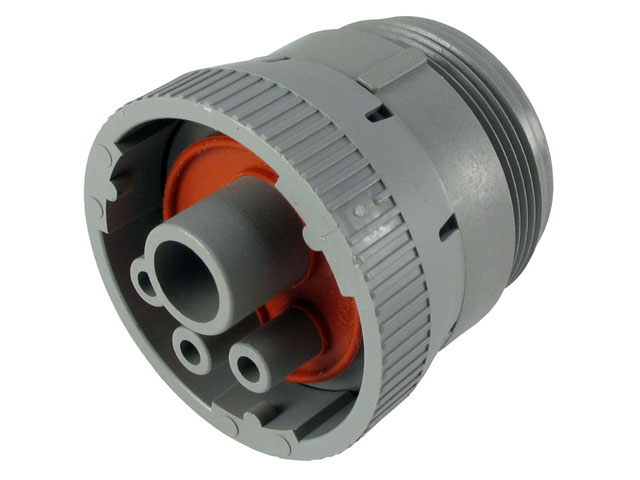

HD16-4-4S-C024
HDDeutsch

HD16-4-4S-C024

HD · Size 4 contacts

Generally high availability — ask for current lead time
Cavities
1
Contact size
4
Series
HD
Current rating
100
Wire size
6
Color
Gray
Request a quoteCall usEmail

Technical specifications

No. of cavities1
ColorGray
Connector StylePlug
Contact Size4
Current Rating100
Flange/In-line/PCB MountIn-line
Holds Pin/SocketSocket
Insulation.280-.292 [7.11-7.42]
keyedNo
MaterialPlastic
ModificationThreaded Rear, Cavities B, C, D Blocked
SeriesHD10 Series
ShapeCircular
Wire Size6

Compatible contacts

0462-203-04141
0462-203-04141

Accessories

HD10-9BT
HD10-9BT

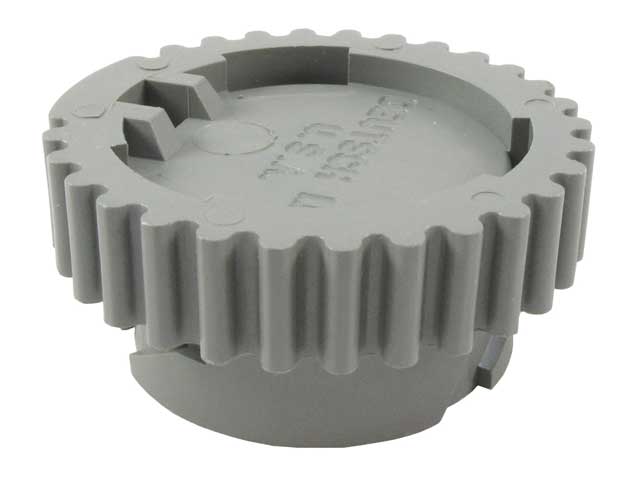

HDC14-9
HDC14-9

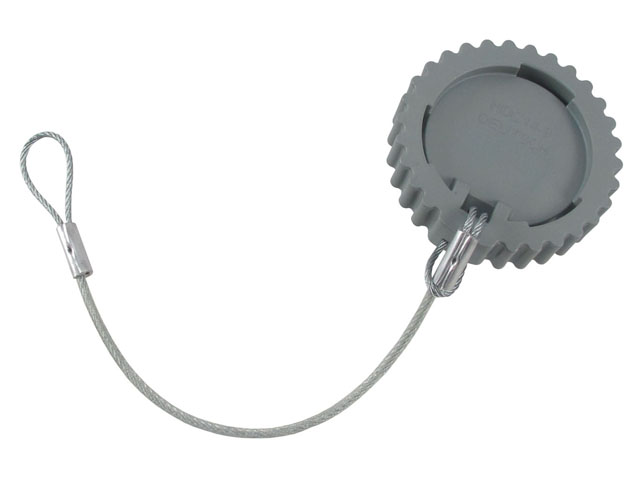

HDC14-9-JDL
HDC14-9-JDL

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
tifProduct Drawing (TIF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
