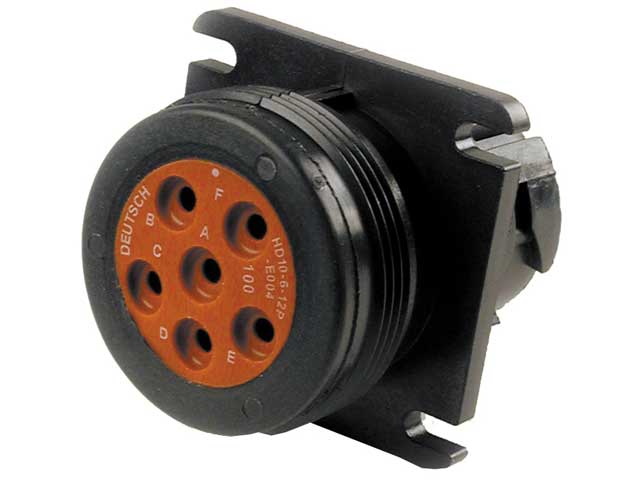

HD10-6-12P-E004
HDDeutsch

HD10-6-12P-E004

HD · Size 12 contacts

Generally high availability — ask for current lead time
Cavities
6
Contact size
12
Series
HD
Current rating
25
Wire size
10, 12, 14
Color
Black
Request a quoteCall usEmail

Technical specifications

No. of cavities6
ColorBlack
Connector StyleReceptacle
Contact Size12
Current Rating25
Flange/In-line/PCB MountFlange
Holds Pin/SocketPin
Insulation.134-.170 [3.40-4.31]
keyedNo
MaterialPlastic
ModificationThreaded Rear
SeriesHD10 Series
ShapeCircular
Wire Size10, 12, 14

Compatible contacts

0460-204-12141
0460-204-12141
0460-220-1231
0460-220-1231
1060-12-0144
1060-12-0144
1060-12-0166
1060-12-0166

Mating connectors

HD16-6-12S
HD16-6-12S
HD16-6-12S-B010
HD16-6-12S-B010

Accessories

HD10-6-GKT
HD10-6-GKT
HD10-6BT
HD10-6BT
HDC16-6
HDC16-6
HDC16-6-JDL
HDC16-6-JDL

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
tifProduct Drawing (TIF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
