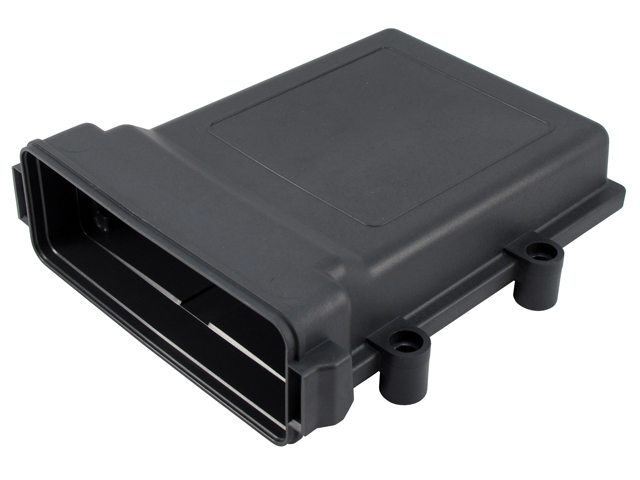

EEC-5X650B
EECDeutsch

EEC-5X650B

EEC

Generally high availability — ask for current lead time
Series
EEC
Color
Black
Request a quoteCall usEmail

Technical specifications

ColorBlack
keyedNo
MaterialPlastic
SeriesEEC
Special FeaturesWithout vent hole. Uses DT Series headers. Accepts 5" x 6.5" PCB.

Mating connectors

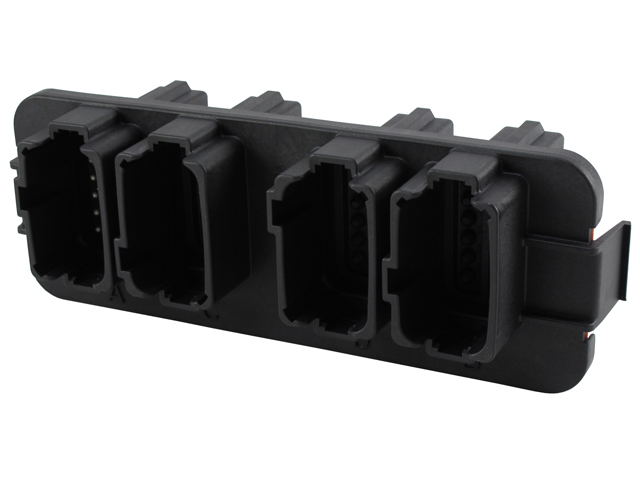

DT13-12PA-R015
DT13-12PA-R015
DT13-24PAB-R015
DT13-24PAB-R015

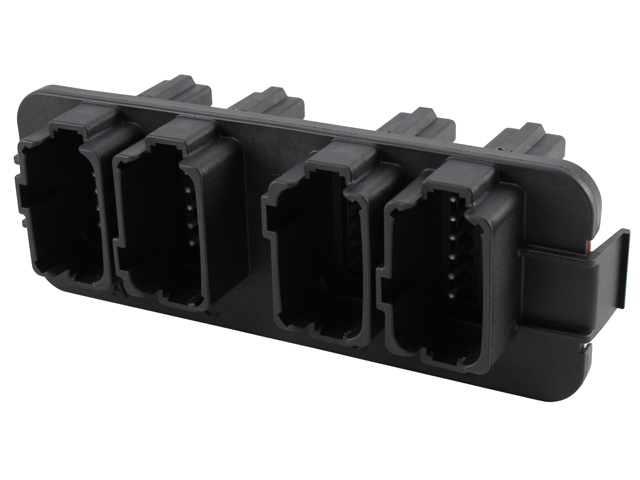

DT13-36PABC-R015
DT13-36PABC-R015

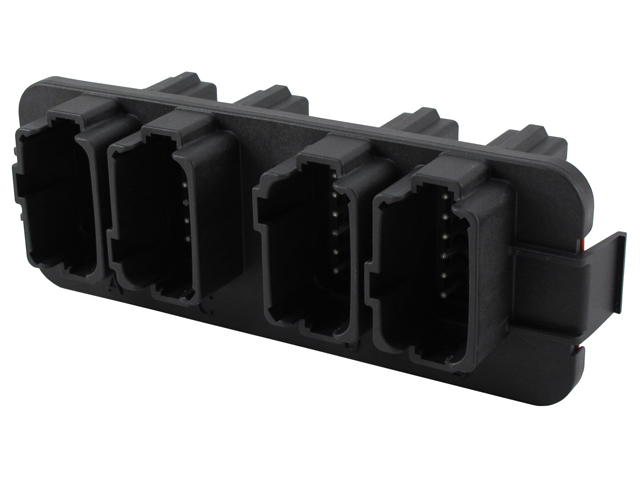

DT13-48PABCD-R015
DT13-48PABCD-R015

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
tifProduct Drawing (TIF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
