DTMF15-48P

Outlet stock: sold out

This surplus stock has been sold. Ask us whether we can source more, or browse the rest of the Components Outlet.

Ask about this part
DTMF48-wayPlugDeutsch

Deutsch DTMF15-48P, DTMF Series, 48-Way Plug, connector, for wire processing

DTMF Series · 48-way · Plug · Size 20 contacts

Generally high availability — ask for current lead time
Cavities
48
Contact size
20
Series
DTMF Series
Type
Plug
Current rating
7.5
Wire size
16
Color
Black
Request a quoteCall usEmail

Technical specifications

ColorBlack
Connector StyleReceptacle
Contact Size20
Current Rating7.5
Flange/In-line/PCB MountPCB
Holds Pin/SocketPin
keyedYes, A, B, C, D key
MaterialPlastic
SeriesDTM Series
ShapeRectangular
Special FeaturesSz. 20 straight molded pins, A, B, C, D key, flangeless
Wire Size16

Mating connectors

DTM06-12SA
DTM06-12SA

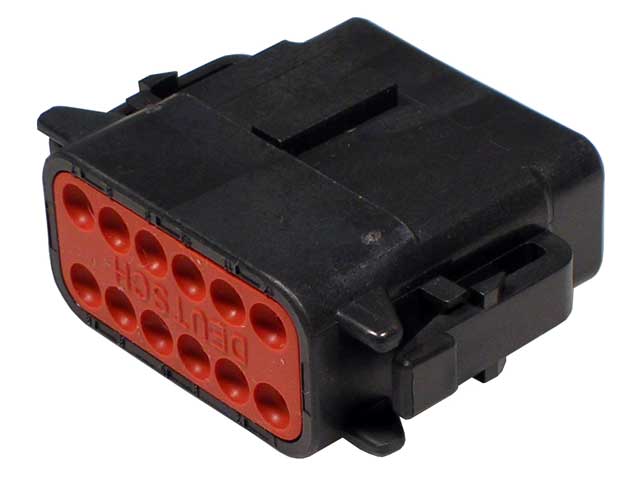

DTM06-12SB
DTM06-12SB
DTM06-12SC
DTM06-12SC
DTM06-12SD
DTM06-12SD

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
tifProduct Drawing (TIF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
