DTM06-4S
DTM4-waySocketDeutsch

DTM06-4S

DTM Miniature Series · 4-way · Socket · Size 20 contacts

Generally high availability — ask for current lead time
Cavities
4
Contact size
20
Series
DTM Miniature Series
Type
Socket
Current rating
7.5
Wire size
16, 18, 20, 22
Color
Gray
Request a quoteCall usEmail

Technical specifications

No. of cavities4
ColorGray
Connector StylePlug
Contact Size20
Current Rating7.5
Flange/In-line/PCB MountIn-line
Holds Pin/SocketSocket
Insulation.053-.120 [1.35-3.05]
keyedNo
MaterialPlastic
SeriesDTM Series
ShapeRectangular
Wire Size16, 18, 20, 22

Compatible contacts

0462-201-20141
0462-201-20141
0462-201-2031
0462-201-2031
1062-20-0144
1062-20-0144
1062-20-0222
1062-20-0222

Mating connectors

DTM04-4P
DTM04-4P

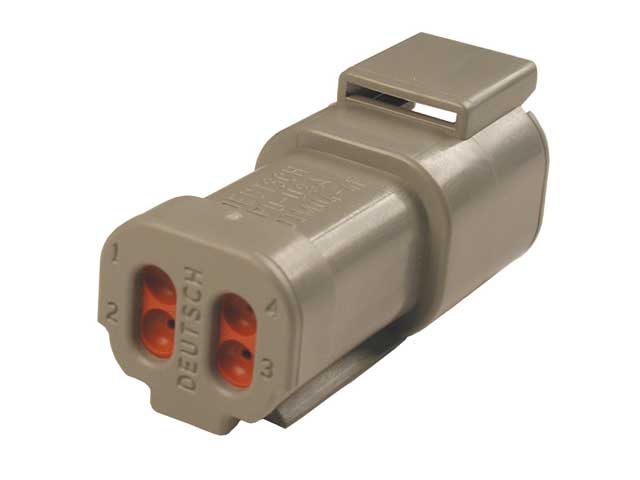

DTM04-4P-E003
DTM04-4P-E003

Required components

Must be ordered together with the housing.

WM-4S
WM-4S
WM-4S
WM-4S

Accessories

DT-RT1
DT-RT1

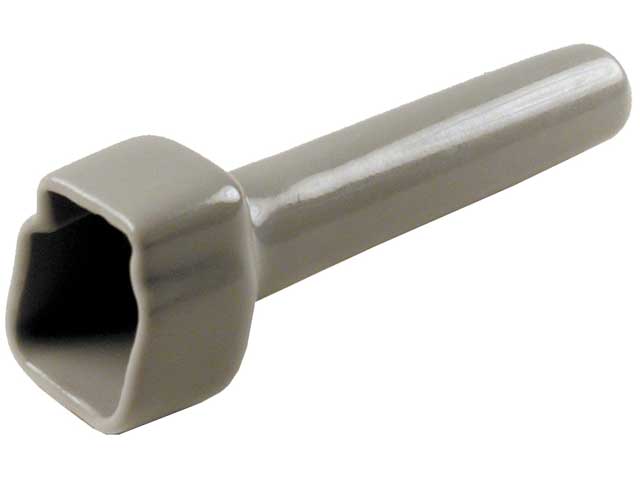

DTM4S-BT
DTM4S-BT

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
tifProduct Drawing (TIF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
