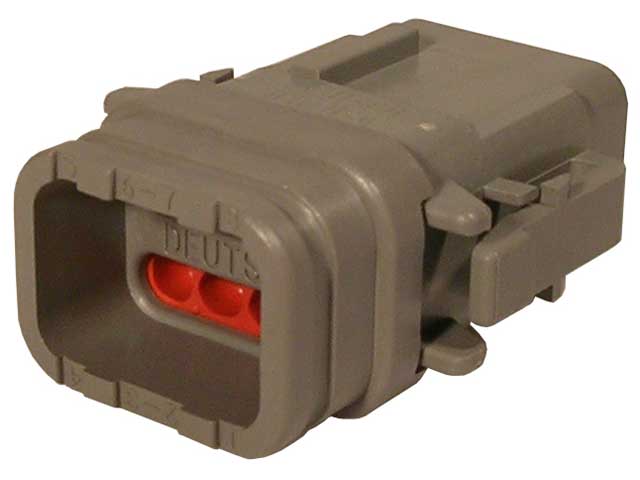

DTM06-08SA-C017
DTM8-waySocketDeutsch

DTM06-08SA-C017

DTM Miniature Series · 8-way · Socket · Size 20 contacts

Generally high availability — ask for current lead time
Cavities
8
Contact size
20
Series
DTM Miniature Series
Type
Socket
Current rating
7.5
Color
Gray
Request a quoteCall usEmail

Technical specifications

No. of cavities8
ColorGray
Connector StylePlug
Contact Size20
Current Rating7.5
Flange/In-line/PCB MountIn-line
Holds Pin/SocketSocket
keyedYes, A key
MaterialPlastic
ModificationSolid Rear Grommet
SeriesDTM Series
ShapeRectangular

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
