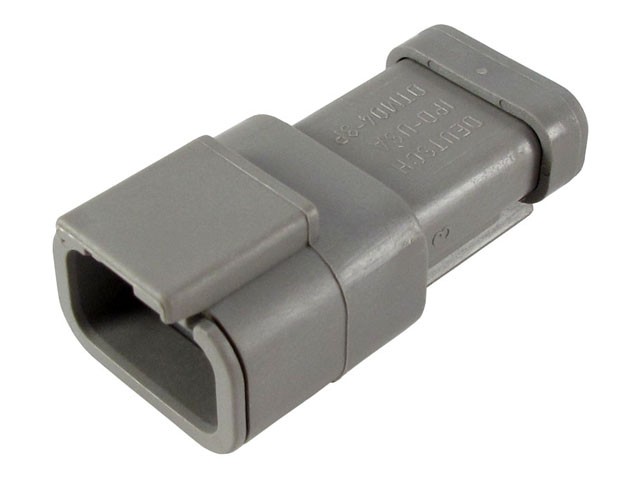

DTM04-3P-E003
DTM3-wayPlugDeutsch

DTM04-3P-E003

DTM Miniature Series · 3-way · Plug · Size 20 contacts

Generally high availability — ask for current lead time
Cavities
3
Contact size
20
Current rating
7.5
Wire size (AWG)
16, 18, 20, 22
Color
Gray
Required wedgelock
WM-3P
Request a quoteCall usEmail

Technical specifications

SeriesDTM Series
BrandDeutsch
No. of cavities3
Part NumberDTM04-3P-E003
Flange/In-line/PCB MountIn-line
ModificationEnd Cap
Current Rating7.5
Contact Size20
ShapeRectangular
MaterialPlastic
Connector StyleReceptacle
Holds Pin/SocketPin
Insulation.053-.120 [1.35-3.05]
Pin/SocketPin
Wire Size16, 18, 20, 22
Required WedgelockWM-3P
ColorGray

Compatible contacts

0460-202-20141
0460-202-20141
0460-202-2031
0460-202-2031
1060-20-0122
1060-20-0122
1060-20-0144
1060-20-0144

Mating connectors

DTM06-3S
DTM06-3S
DTM06-3S-E007
DTM06-3S-E007

Required components

Must be ordered together with the housing.

WM-3P
WM-3P

Accessories

1011-026-0205
1011-026-0205
1027-003-1200
1027-003-1200
DT-RT1
DT-RT1
SSK02 Rubber boot
SSK02 Rubber boot

Drawings & CAD files

stepCAD Files 3D Model (STEP, Version 99, ZIP)
127.14 KB
pdfCustomer View Model (PDF)
340.16 KB
pdfProduct Drawing (PDF)
49.79 KB
tifProduct Drawing (TIF)
48.88 KB
dxfCAD Files 2D Drawing (DXF, Version 99, ZIP)
36.82 KB
igesCAD Files 3D Model (IGES, Version 99, ZIP)
352.44 KB
