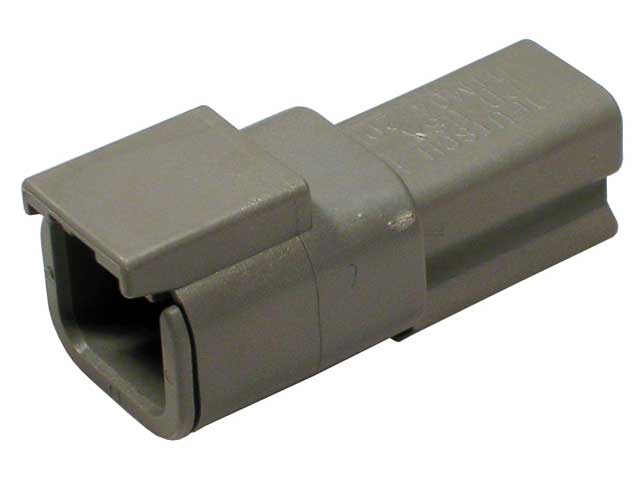

DTM04-2P
DTM2-wayPlugDeutsch

DTM04-2P

DTM Miniature Series · 2-way · Plug · Size 20 contacts

Generally high availability — ask for current lead time
Cavities
2
Contact size
20
Series
DTM Miniature Series
Type
Plug
Current rating
7.5
Wire size
16, 18, 20, 22
Color
Gray
Request a quoteCall usEmail

Technical specifications

No. of cavities2
ColorGray
Connector StyleReceptacle
Contact Size20
Current Rating7.5
Flange/In-line/PCB MountIn-line
Holds Pin/SocketPin
Insulation.053-.120 [1.35-3.05]
keyedNo
MaterialPlastic
SeriesDTM Series
ShapeRectangular
Wire Size16, 18, 20, 22

Compatible contacts

0460-202-20141
0460-202-20141
0460-202-2031
0460-202-2031
1060-20-0122
1060-20-0122
1060-20-0144
1060-20-0144

Mating connectors

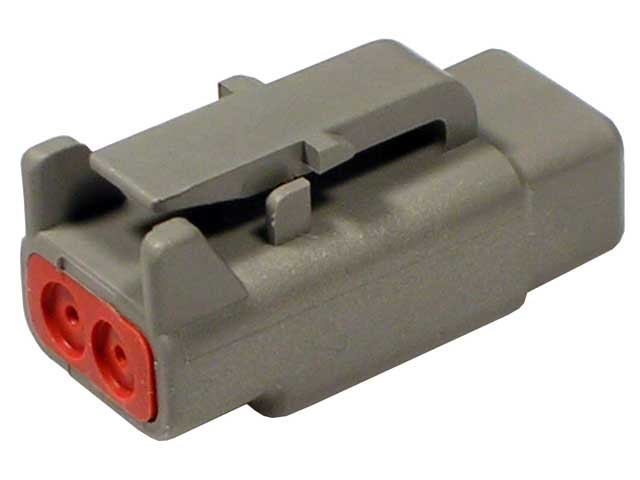

DTM06-2S
DTM06-2S
DTM06-2S-E003
DTM06-2S-E003
DTM06-2S-E007
DTM06-2S-E007

Required components

Must be ordered together with the housing.

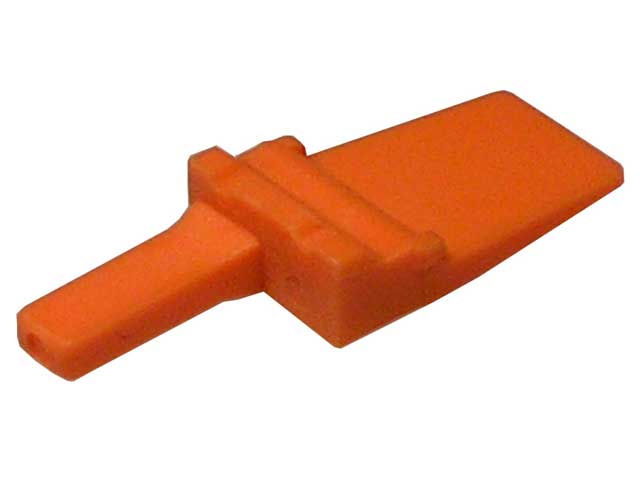

WM-2P
WM-2P

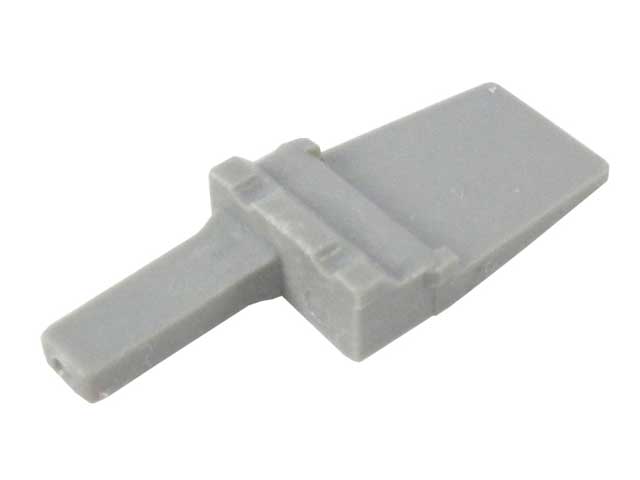

WM-2PA
WM-2PA

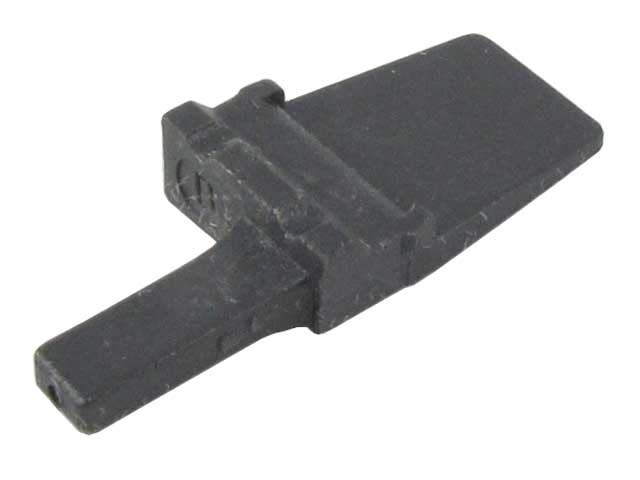

WM-2PB
WM-2PB
WM-2P
WM-2P

Accessories

1011-026-0205
1011-026-0205
1027-003-1200
1027-003-1200
DT-RT1
DT-RT1

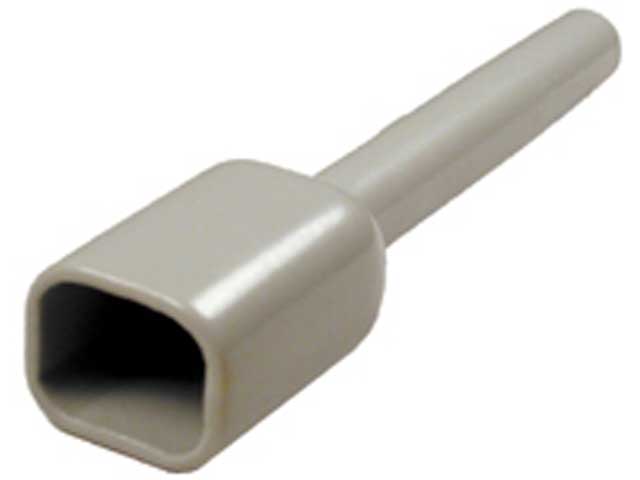

DTM2P-BT
DTM2P-BT

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
tifProduct Drawing (TIF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
