DTHD04-1-12P-E003
DTHDDeutsch

DTHD04-1-12P-E003

DTHD · Size 12 contacts

Generally high availability — ask for current lead time
Cavities
1
Contact size
12
Series
DTHD
Current rating
25
Wire size
10, 12, 14
Color
Black
Request a quoteCall usEmail

Technical specifications

No. of cavities1
ColorBlack
Connector StyleReceptacle
Contact Size12
Current Rating25
Flange/In-line/PCB MountIn-line
Holds Pin/SocketPin
Insulation.134-.170 [3.40-4.32]
keyedNo
MaterialPlastic
ModificationEnd Cap
SeriesDTHD Series
ShapeCircular
Wire Size10, 12, 14

Compatible contacts

0460-204-12141
0460-204-12141
0460-220-1231
0460-220-1231
1060-12-0144
1060-12-0144
1060-12-0166
1060-12-0166

Mating connectors

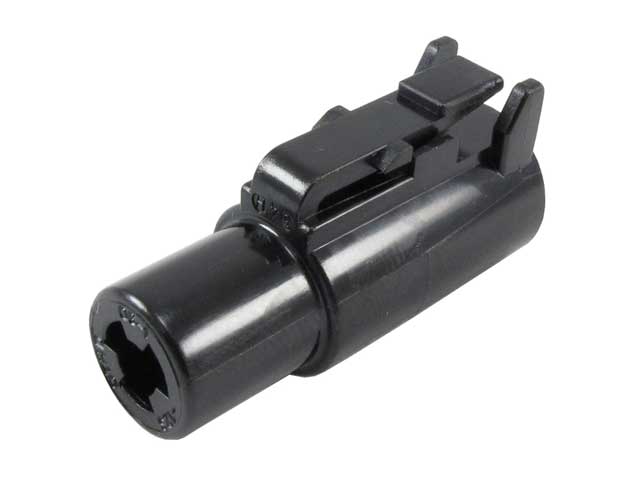

DTHD06-1-12S
DTHD06-1-12S
DTHD06-1-12S-E003
DTHD06-1-12S-E003

Accessories

1011-026-0205
1011-026-0205
1011-030-0205
1011-030-0205
1027-003-1200
1027-003-1200
1027-008-1200
1027-008-1200

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
tifProduct Drawing (TIF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
