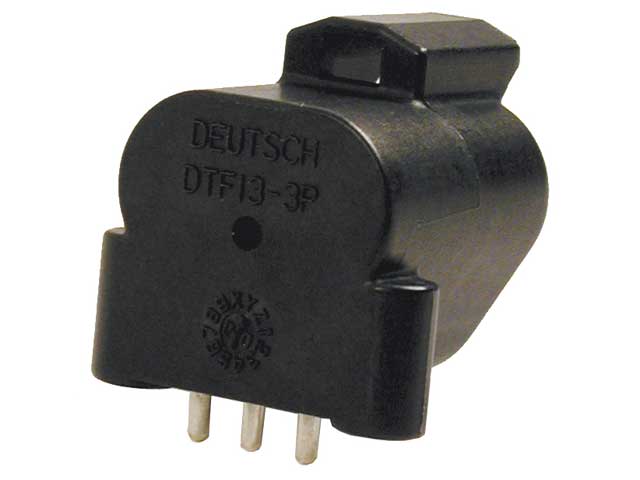

DTF13-3P-1939
DTF133-wayPlugDeutsch

DTF13-3P-1939

DTF13 Flanged Series · 3-way · Plug · Size 16 contacts

Generally high availability — ask for current lead time
Cavities
3
Contact size
16
Series
DTF13 Flanged Series
Type
Plug
Current rating
13
Wire size
16
Color
Black
Request a quoteCall usEmail

Technical specifications

No. of cavities3
ColorBlack
Connector StyleReceptacle
Contact Size16
Current Rating13
Flange/In-line/PCB MountPCB
keyedYes, J1939
MaterialPlastic
SeriesDT Series
ShapeTriangular
Special Features90 degrees molded pins, J1939, flangeless
Wire Size16

Mating connectors

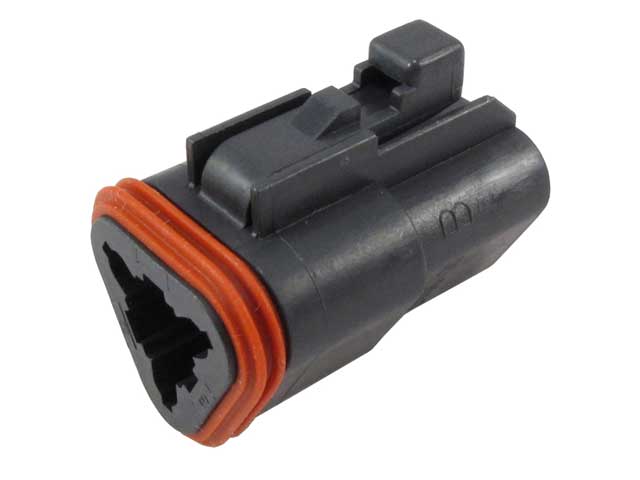

DT06-3S-E004
DT06-3S-E004

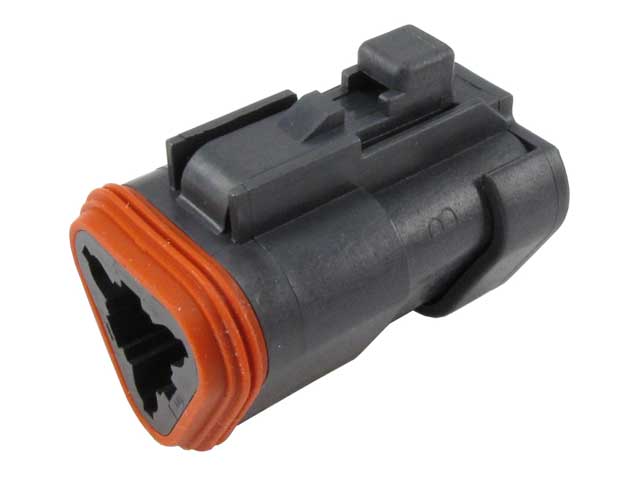

DT06-3S-EP06
DT06-3S-EP06

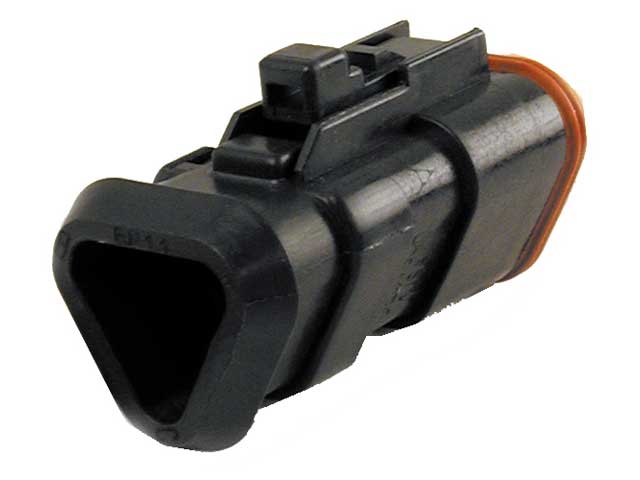

DT06-3S-EP11
DT06-3S-EP11

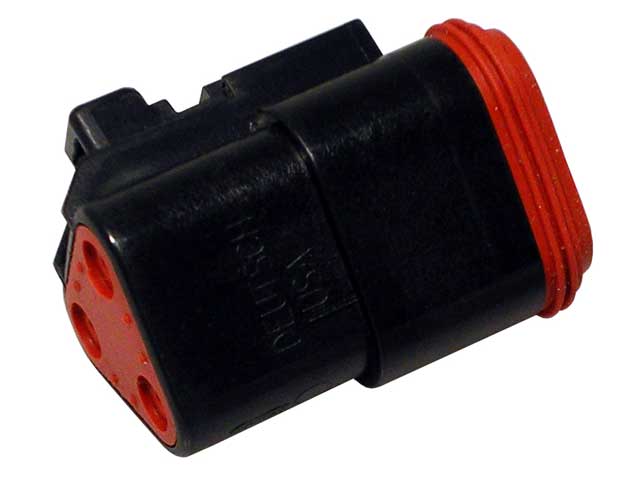

DT06-3S-P012
DT06-3S-P012

Drawings & CAD files

pdfProduct Drawing (PDF)
tifProduct Drawing (TIF)

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
