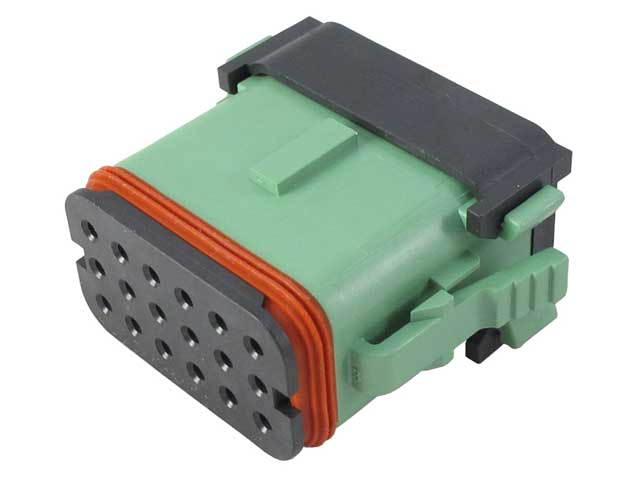

DT16-18SC-EK02
DT18-waySocketDeutsch

DT16-18SC-EK02

DT Series · 18-way · Socket · Size 16 contacts

Generally high availability — ask for current lead time
Cavities
18
Contact size
16
Series
DT Series
Type
Socket
Current rating
13
Wire size
14, 16, 18, 20
Color
Green
Request a quoteCall usEmail

Technical specifications

No. of cavities18
ColorGreen
Connector StylePlug
Contact Size16
Current Rating13
Holds Pin/SocketSocket
Insulation.053-.120 [1.35-3.05]
keyedYes, C key
MaterialPlastic
ModificationEnhanced Seal Retention, End Cap
SeriesDT Series
ShapeRectangular
Wire Size14, 16, 18, 20

Required components

Must be ordered together with the housing.

N/A

Accessories

0411-336-1605
0411-336-1605
1011-349-1205
1011-349-1205
114017
114017

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
