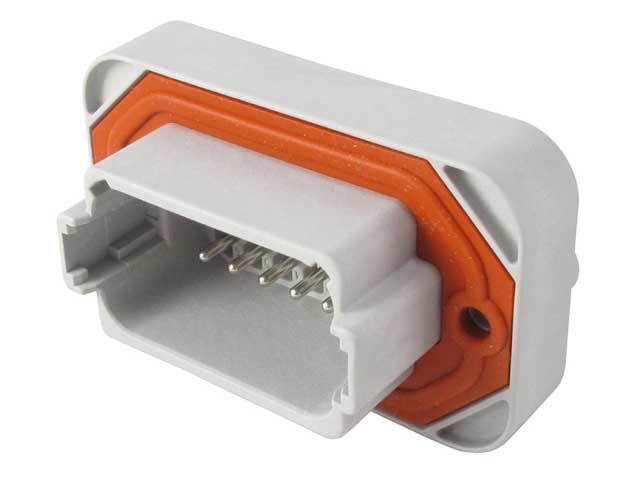

DT15-12PA-B028
DT1512-wayPlugDeutsch

DT15-12PA-B028

DT15 Flanged Series · 12-way · Plug · Size 16 contacts

Generally high availability — ask for current lead time
Cavities
12
Contact size
16
Series
DT15 Flanged Series
Type
Plug
Current rating
13
Wire size
16
Color
Gray
Request a quoteCall usEmail

Technical specifications

No. of cavities12
ColorGray
Connector StyleReceptacle
Contact Size16
Current Rating13
Flange/In-line/PCB MountPCB
keyedYes, A key
MaterialPlastic
SeriesDT Series
ShapeRectangular
Special FeaturesStraight molded pins
Wire Size16

Mating connectors

DT06-12SA
DT06-12SA
DT06-12SA-C015
DT06-12SA-C015
DT06-12SA-CE01
DT06-12SA-CE01
DT06-12SA-E003
DT06-12SA-E003

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
