DT15-08PB-G003
DT158-wayPlugDeutsch

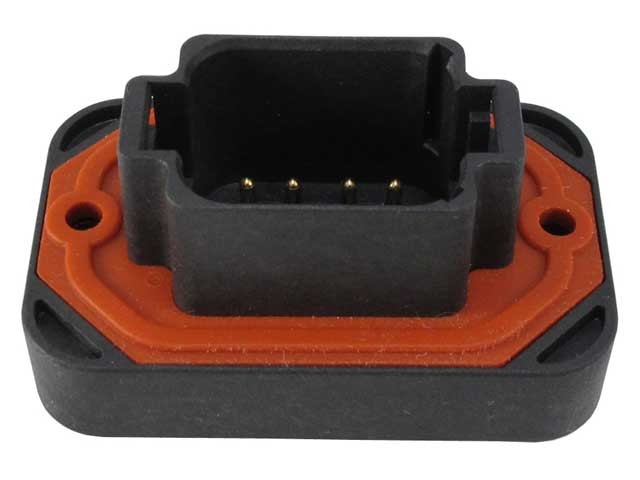

DT15-08PB-G003

DT15 Flanged Series · 8-way · Plug · Size 16 contacts

Generally high availability — ask for current lead time
Cavities
8
Contact size
16
Current rating
13
Wire size (AWG)
16
Color
Black
Request a quoteCall usEmail

Technical specifications

SeriesDT Series
BrandDeutsch
No. of cavities8
Part NumberDT15-08PB-G003
Flange/In-line/PCB MountPCB
keyedYes, B key
Current Rating13
Contact Size16
ShapeRectangular
MaterialPlastic
Connector StyleReceptacle
Special FeaturesStraight molded gold pins
Wire Size16
ColorBlack

Mating connectors

DT06-08SB
DT06-08SB
DT06-08SB-C015
DT06-08SB-C015
DT06-08SB-CE01
DT06-08SB-CE01
DT06-08SB-P012
DT06-08SB-P012

Drawings & CAD files

dxfCAD Files 2D Drawing (DXF Version 99 ZIP)
97.82 KB
igesCAD Files 3D Model (IGES Version 99 ZIP)
1.02 MB
stepCAD Files 3D Model (STEP Version 99 ZIP)
291.56 KB
pdfCustomer View Model (PDF)
1.34 MB

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
