DT13-12PA-B016
DT1312-wayPlugDeutsch

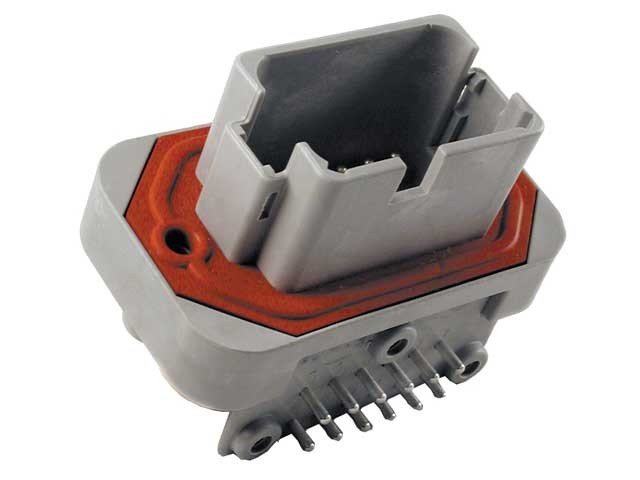

DT13-12PA-B016

DT13 Flanged Series · 12-way · Plug · Size 16 contacts

Generally high availability — ask for current lead time
Cavities
12
Contact size
16
Current rating
13
Wire size (AWG)
16
Color
Gray
Request a quoteCall usEmail

Technical specifications

SeriesDT Series
BrandDeutsch
No. of cavities12
Part NumberDT13-12PA-B016
Flange/In-line/PCB MountPCB
keyedYes, Enhanced A key
Current Rating13
Contact Size16
ShapeRectangular
MaterialPlastic
Connector StyleReceptacle
Special Features90 degrees molded pins
Wire Size16
ColorGray

Mating connectors

DT06-12SA-CE05
DT06-12SA-CE05
DT06-12SA-CE06
DT06-12SA-CE06
DT06-12SA-EP06
DT06-12SA-EP06
DT06-12SA-P012
DT06-12SA-P012

Drawings & CAD files

pdfCustomer View Model (PDF)
2.26 MB
pdfProduct Drawing (PDF)
335.35 KB
dxfCAD Files 2D Drawing (DXF Version 99 ZIP)
96.63 KB
igesCAD Files 3D Model (IGES Version 99 ZIP)
1.42 MB
stepCAD Files 3D Model (STEP Version 99 ZIP)
380.60 KB

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
