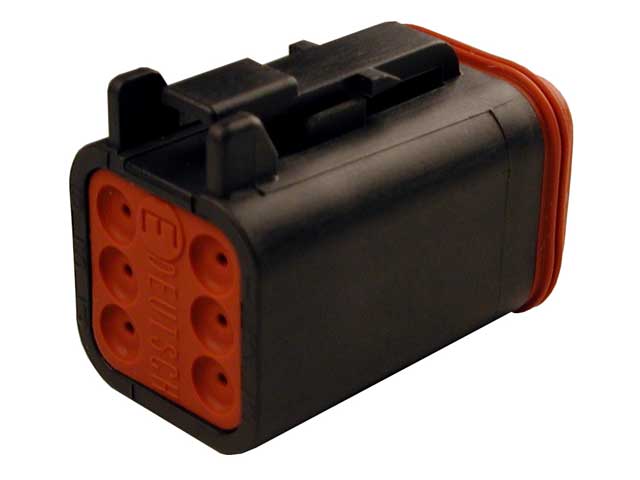

DT06-6S-CE06
DT6-waySocketDeutsch

DT06-6S-CE06

DT Series · 6-way · Socket · Size 16 contacts

Generally high availability — ask for current lead time
Cavities
6
Contact size
16
Series
DT Series
Type
Socket
Current rating
13
Wire size
14, 16, 18, 20
Color
Black
Request a quoteCall usEmail

Technical specifications

No. of cavities6
ColorBlack
Connector StylePlug
Contact Size16
Current Rating13
Flange/In-line/PCB MountIn-line
Holds Pin/SocketSocket
Insulation.053-.120 [1.35-3.05]
keyedNo
MaterialPlastic
ModificationReduced Dia. Seals, Enhanced Seal Retention
Seal SizeE seal
SeriesDT Series
ShapeRectangular
Wire Size14, 16, 18, 20

Compatible contacts

0462-201-16141
0462-201-16141
0462-201-1631
0462-201-1631
1062-16-0122
1062-16-0122
1062-16-0144
1062-16-0144

Mating connectors

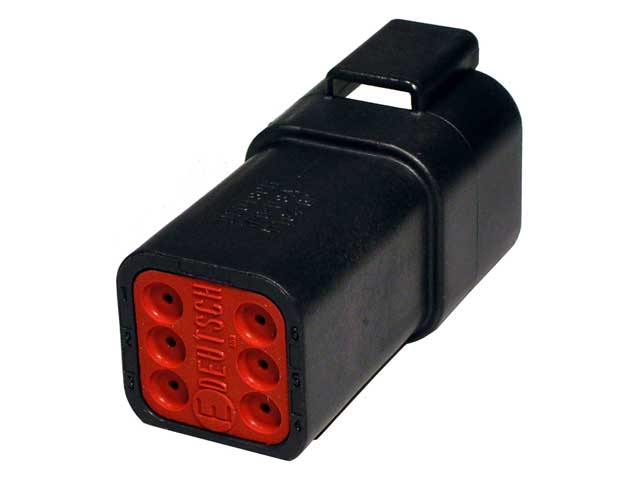

DT04-6P-CE02
DT04-6P-CE02

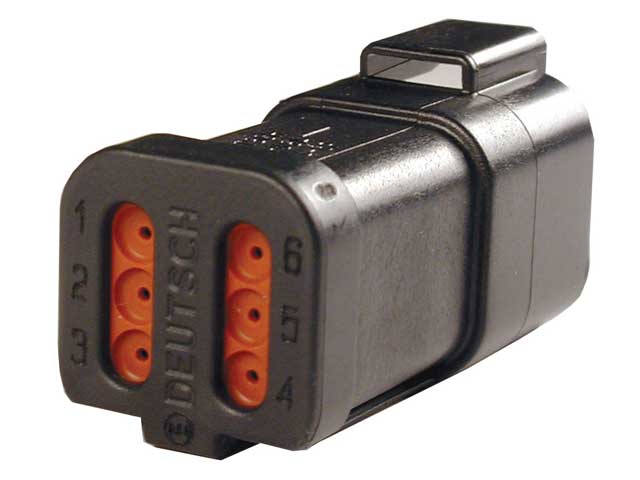

DT04-6P-CE03
DT04-6P-CE03

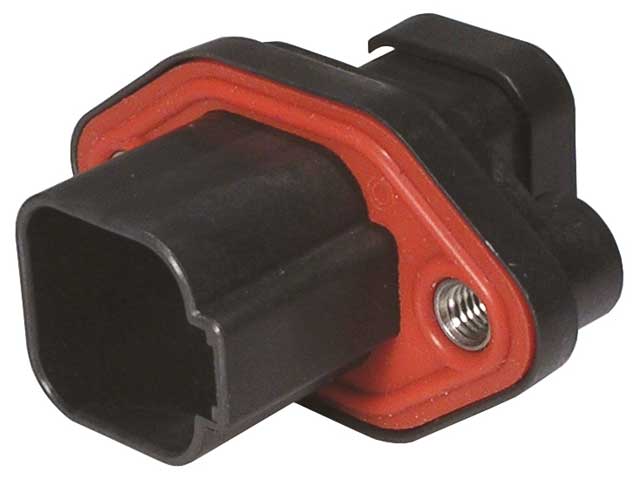

DT04-6P-CL09
DT04-6P-CL09

Required components

Must be ordered together with the housing.

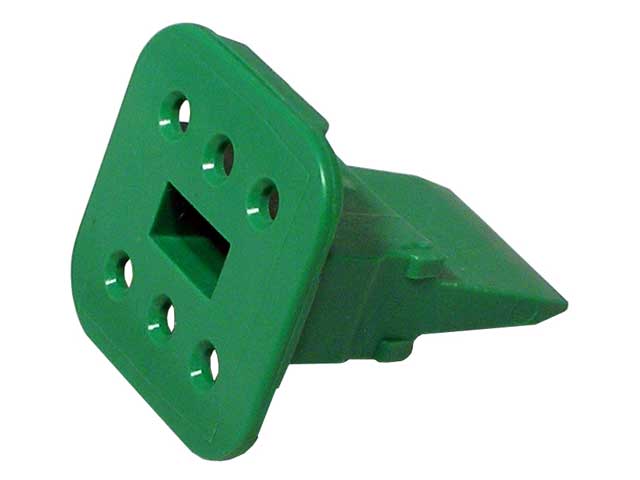

W6S-P012
W6S-P012
W6S-P012
W6S-P012

Accessories

1011-239-0605
1011-239-0605
1011-240-0605
1011-240-0605
1011-347-0605
1011-347-0605
DT6S-BT
DT6S-BT

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
tifProduct Drawing (TIF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
