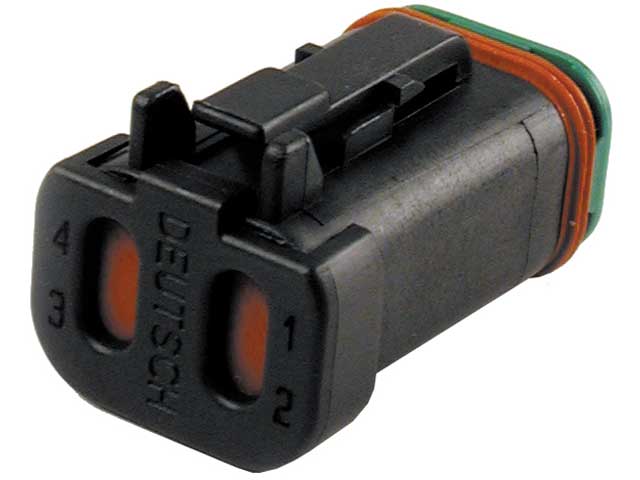

DT06-4S-CP01
DT4-waySocketDeutsch

DT06-4S-CP01

DT Series · 4-way · Socket · Size 16 contacts

Generally high availability — ask for current lead time
Cavities
4
Contact size
16
Series
DT Series
Type
Socket
Current rating
13
Color
Black
Request a quoteCall usEmail

Technical specifications

No. of cavities4
ColorBlack
Connector StylePlug
Contact Size16
Current Rating13
Flange/In-line/PCB MountIn-line
Holds Pin/SocketSocket
keyedNo
MaterialPlastic
ModificationEnhanced Seal Retention, Solid Rear Grommet, End Cap
SeriesDT Series
ShapeRectangular

Compatible contacts

0462-201-16141
0462-201-16141
0462-201-1631
0462-201-1631
1062-16-0122
1062-16-0122
1062-16-0144
1062-16-0144

Required components

Must be ordered together with the housing.

Included

Accessories

1011-346-0405
1011-346-0405
DT-RT1
DT-RT1

Drawings & CAD files

pdfProduct Drawing (PDF)
tifProduct Drawing (TIF)

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
