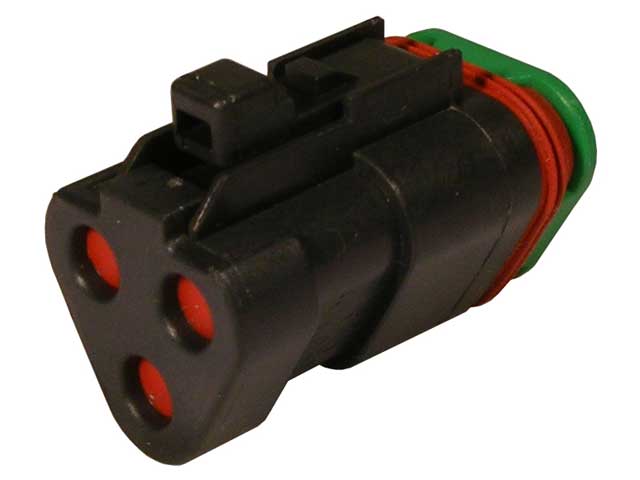

DT06-3S-CP01
DT3-waySocketDeutsch

DT06-3S-CP01

DT Series · 3-way · Socket · Size 16 contacts

Generally high availability — ask for current lead time
Cavities
3
Contact size
16
Series
DT Series
Type
Socket
Current rating
13
Color
Black
Request a quoteCall usEmail

Technical specifications

No. of cavities3
ColorBlack
Connector StylePlug
Contact Size16
Current Rating13
Flange/In-line/PCB MountIn-line
Holds Pin/SocketSocket
keyedNo
MaterialPlastic
ModificationEnhanced Seal Retention, Solid Rear Grommet, End Cap
SeriesDT Series
ShapeTriangular

Compatible contacts

0462-201-16141
0462-201-16141
0462-201-1631
0462-201-1631
1062-16-0122
1062-16-0122
1062-16-0144
1062-16-0144

Required components

Must be ordered together with the housing.

Included

Accessories

1011-345-0305
1011-345-0305
DT-RT1
DT-RT1

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
tifProduct Drawing (TIF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
