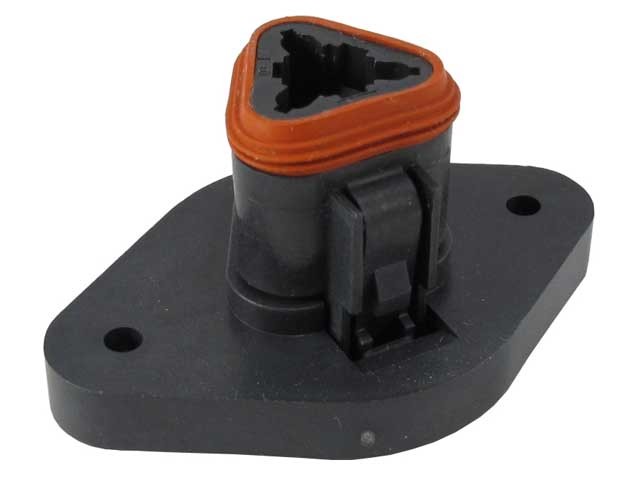

DT06-3S-CL08
DT3-waySocketDeutsch

DT06-3S-CL08

DT Series · 3-way · Socket · Size 16 contacts

Generally high availability — ask for current lead time
Cavities
3
Contact size
16
Current rating
13
Wire size (AWG)
14, 16, 18, 20
Color
Black
Required wedgelock
W3S-P012
Request a quoteCall usEmail

Technical specifications

SeriesDT Series
BrandDeutsch
No. of cavities3
Part NumberDT06-3S-CL08
Flange/In-line/PCB MountFlange
ModificationEnhanced Seal Retention, Reduced Dia. Seals, Mating Latch Held Down By Flange
Current Rating13
Contact Size16
ShapeTriangular
MaterialPlastic
Connector StylePlug
Holds Pin/SocketSocket
Insulation.053-.120 [1.35-3.05]
Wire Size14, 16, 18, 20
Required WedgelockW3S-P012
ColorBlack

Compatible contacts

0462-201-16141
0462-201-16141
0462-201-1631
0462-201-1631
1062-16-0122
1062-16-0122
1062-16-0144
1062-16-0144

Mating connectors

DT04-3P-CE02
DT04-3P-CE02
DT04-3P-CE03
DT04-3P-CE03
DT04-3P-CE09
DT04-3P-CE09

Required components

Must be ordered together with the housing.

W3S-1939-P012
W3S-1939-P012
W3S-P012
W3S-P012

Accessories

DT-RT1
DT-RT1

Drawings & CAD files

pdfProduct Drawing (PDF)
96.23 KB
tifProduct Drawing (TIF)
95.33 KB
dxfCAD Files 2D Drawing (DXF Version 99 ZIP)
47.90 KB
igesCAD Files 3D Model (IGES Version 99 ZIP)
322.37 KB
stepCAD Files 3D Model (STEP Version 99 ZIP)
112.59 KB
pdfCustomer View Model (PDF)
375.25 KB
