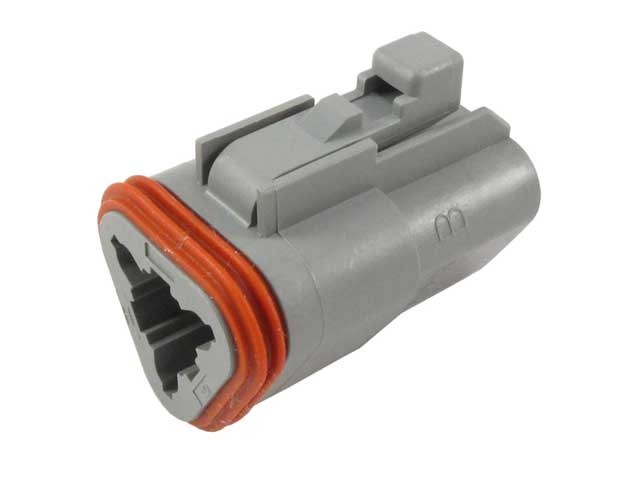

DT06-3S-C008
DT3-waySocketDeutsch

DT06-3S-C008

DT Series · 3-way · Socket · Size 16 contacts

Generally high availability — ask for current lead time
Contact size
16
Current rating
13
Wire size (AWG)
14, 16, 18, 20
Color
Gray
Required wedgelock
W3S
Request a quoteCall usEmail

Technical specifications

SeriesDT Series
BrandDeutsch
Part NumberDT06-3S-C008
Flange/In-line/PCB MountIn-line
ModificationC Cavity Blocked
Current Rating13
Contact Size16
ShapeTriangular
MaterialPlastic
Connector StylePlug
Holds Pin/SocketSocket
Insulation.088-.145 [2.24-3.68]
Wire Size14, 16, 18, 20
Required WedgelockW3S
ColorGray

Compatible contacts

0462-201-16141
0462-201-16141
0462-201-1631
0462-201-1631
1062-16-0122
1062-16-0122
1062-16-0144
1062-16-0144

Mating connectors

DT04-3P-C008
DT04-3P-C008

Required components

Must be ordered together with the housing.

W3S
W3S
W3S-1939
W3S-1939

Accessories

1011-231-0305
1011-231-0305
1011-232-0305
1011-232-0305
1011-345-0305
1011-345-0305
DT3S-BT
DT3S-BT

Drawings & CAD files

stepCAD Files 3D Model (STEP Version 99 ZIP)
55.13 KB
pdfCustomer View Model (PDF)
282.29 KB
pdfProduct Drawing (PDF)
73.41 KB
tifProduct Drawing (TIF)
72.50 KB
dxfCAD Files 2D Drawing (DXF Version 99 ZIP)
39.93 KB
igesCAD Files 3D Model (IGES Version 99 ZIP)
168.28 KB

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
