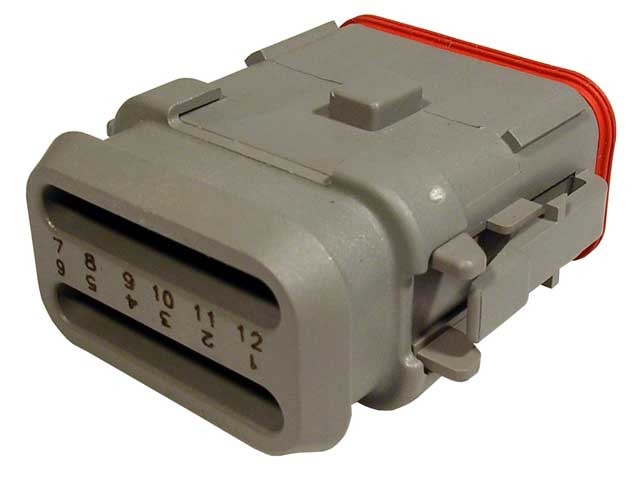

DT06-12SA-EP20
DT12-waySocketDeutsch

DT06-12SA-EP20

DT Series · 12-way · Socket · Size 16 contacts

Generally high availability — ask for current lead time
Cavities
12
Contact size
16
Current rating
13
Wire size (AWG)
14, 16, 18, 20
Color
Gray
Required wedgelock
W12S-P012
Request a quoteCall usEmail

Technical specifications

SeriesDT Series
BrandDeutsch
No. of cavities12
Part NumberDT06-12SA-EP20
Flange/In-line/PCB MountIn-line
keyedYes, A key
ModificationEnhanced Seal Retention, Shrink Boot Adapter
Current Rating13
Contact Size16
ShapeRectangular
MaterialPlastic
Connector StylePlug
Holds Pin/SocketSocket
Insulation.088-.145 [2.24-3.68]
Wire Size14, 16, 18, 20
Required WedgelockW12S-P012
ColorGray

Compatible contacts

0462-201-16141
0462-201-16141
0462-201-1631
0462-201-1631
1062-16-0122
1062-16-0122
1062-16-0144
1062-16-0144

Mating connectors

DT04-12PA-B016
DT04-12PA-B016
DT04-12PA-BE02
DT04-12PA-BE02
DT04-12PA-BL04
DT04-12PA-BL04

Required components

Must be ordered together with the housing.

W12S-P012
W12S-P012

Accessories

1011-349-1205
1011-349-1205
DT-RT1
DT-RT1

Drawings & CAD files

pdfCustomer View Model (PDF)
682.62 KB
pdfProduct Drawing (PDF)
297.05 KB
dxfCAD Files 2D Drawing (DXF Version 99 ZIP)
70.29 KB
igesCAD Files 3D Model (IGES Version 99 ZIP)
617.11 KB
stepCAD Files 3D Model (STEP Version 99 ZIP)
227.03 KB

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
