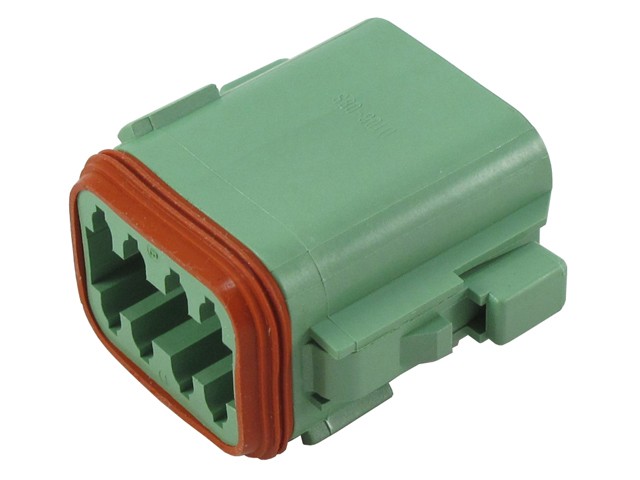

DT06-08SC-P012
DT8-waySocketDeutsch

DT06-08SC-P012

DT Series · 8-way · Socket · Size 16 contacts

Generally high availability — ask for current lead time
Cavities
8
Contact size
16
Current rating
13
Wire size (AWG)
14, 16, 18, 20
Color
Green
Required wedgelock
W8S-P012
Request a quoteCall usEmail

Technical specifications

SeriesDT Series
BrandDeutsch
No. of cavities8
Part NumberDT06-08SC-P012
Flange/In-line/PCB MountIn-line
keyedYes, C key
ModificationEnhanced Seal Retention
Current Rating13
Contact Size16
ShapeRectangular
MaterialPlastic
Connector StylePlug
Holds Pin/SocketSocket
Insulation.088-.145 [2.24-3.68]
Wire Size14, 16, 18, 20
Required WedgelockW8S-P012
ColorGreen

Compatible contacts

0462-201-16141
0462-201-16141
0462-201-1631
0462-201-1631
1062-16-0122
1062-16-0122
1062-16-0144
1062-16-0144

Mating connectors

DT04-08PC
DT04-08PC
DT04-08PC-E003
DT04-08PC-E003

Required components

Must be ordered together with the housing.

W8S-P012
W8S-P012

Accessories

1011-243-0805
1011-243-0805
1011-244-0805
1011-244-0805
1011-348-0805
1011-348-0805
DT8S-BT
DT8S-BT

Drawings & CAD files

stepCAD Files 3D Model (STEP Version 99 ZIP)
77.75 KB
pdfCustomer View Model (PDF)
349.91 KB
pdfProduct Drawing (PDF)
60.58 KB
tifProduct Drawing (TIF)
59.68 KB
dxfCAD Files 2D Drawing (DXF Version 99 ZIP)
39.26 KB
igesCAD Files 3D Model (IGES Version 99 ZIP)
230.52 KB
