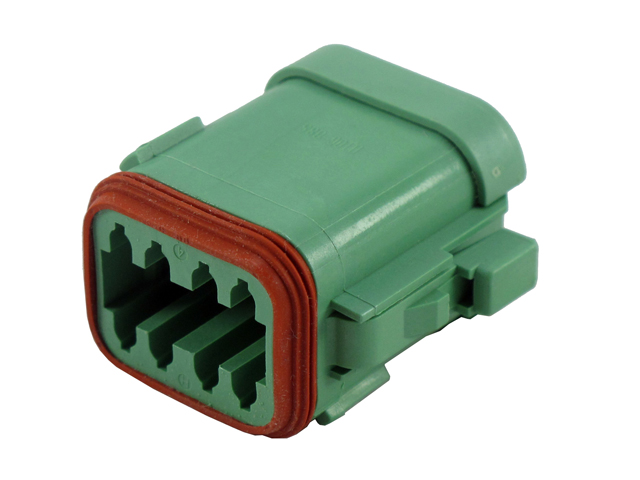

DT06-08SC-C017
DT8-waySocketDeutsch

DT06-08SC-C017

DT Series · 8-way · Socket · Size 16 contacts

Generally high availability — ask for current lead time
Cavities
8
Contact size
16
Series
DT Series
Type
Socket
Current rating
13
Color
Green
Request a quoteCall usEmail

Technical specifications

No. of cavities8
ColorGreen
Connector StylePlug
Contact Size16
Current Rating13
Flange/In-line/PCB MountIn-line
Holds Pin/SocketSocket
keyedYes, C key
MaterialPlastic
ModificationSolid Rear Grommet, End Cap
SeriesDT Series
ShapeRectangular

Required components

Must be ordered together with the housing.

Included

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
