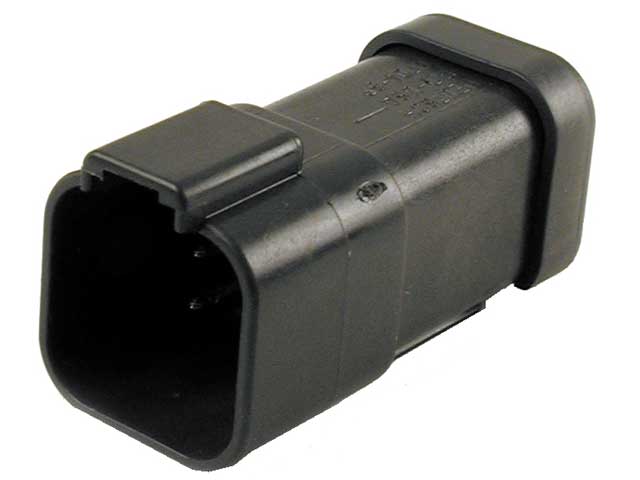

DT04-6P-EP14
DT6-wayPlugDeutsch

DT04-6P-EP14

DT Series · 6-way · Plug · Size 16 contacts

Generally high availability — ask for current lead time
Cavities
6
Contact size
16
Series
DT Series
Type
Plug
Current rating
13
Color
Black
Request a quoteCall usEmail

Technical specifications

No. of cavities6
ColorBlack
Connector StyleReceptacle
Contact Size16
Current Rating13
Flange/In-line/PCB MountIn-line
Holds Pin/SocketPin
keyedNo
MaterialPlastic
ModificationNickel Contacts, (2) 3 Pin Busses
SeriesDT Series
ShapeRectangular

Mating connectors

DT06-6S-E004
DT06-6S-E004
DT06-6S-EP06
DT06-6S-EP06
DT06-6S-P012
DT06-6S-P012

Required components

Must be ordered together with the housing.

Included

Accessories

1011-026-0205
1011-026-0205
1027-003-1200
1027-003-1200

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
tifProduct Drawing (TIF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
