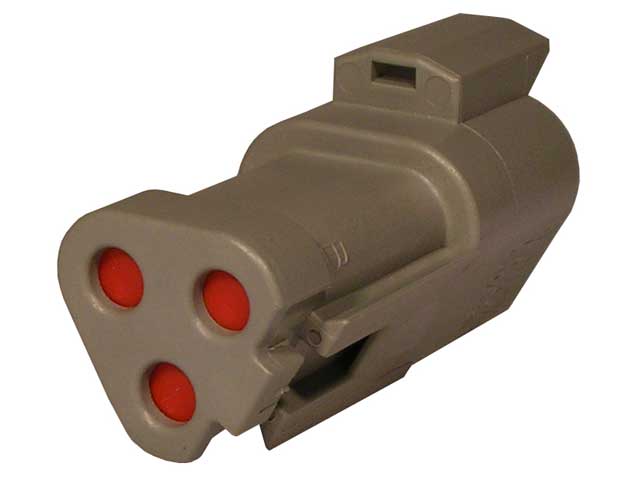

DT04-3P-C017
DT3-wayPlugDeutsch

DT04-3P-C017

DT Series · 3-way · Plug · Size 16 contacts

Generally high availability — ask for current lead time
Cavities
3
Contact size
16
Series
DT Series
Type
Plug
Current rating
13
Color
Gray
Request a quoteCall usEmail

Technical specifications

No. of cavities3
ColorGray
Connector StyleReceptacle
Contact Size16
Current Rating13
Flange/In-line/PCB MountIn-line
Holds Pin/SocketPin
keyedNo
MaterialPlastic
ModificationSolid Rear Grommet, End Cap
SeriesDT Series
ShapeTriangular

Accessories

1011-026-0205
1011-026-0205
1027-003-1200
1027-003-1200

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
tifProduct Drawing (TIF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
